51021-0300, Molex, 51021 Female Connector Housing, 1.25mm Pitch, 3 Way, 1 Row, Корпус разъема

Molex PicoBlade Series 51021 Connector Housings

The PicoBlade 51021 Series can be used across a number of applications such as automotive, industrial, consumer, computing and medical. The PicoBlade connector system is offered in wire to board and wire to wire options and is ideal for saving PCB space.

Features and Benefits

• Single row, wire to wire and wire to board housings
• Straight friction locks provide secure mating
• Compact design
• 1.25 mm pitch
• 2 to 15 circuits
• The crimp terminals are polarised to prevent incorrect insertion

Standards

UL (E29179); CSA (LR19980)

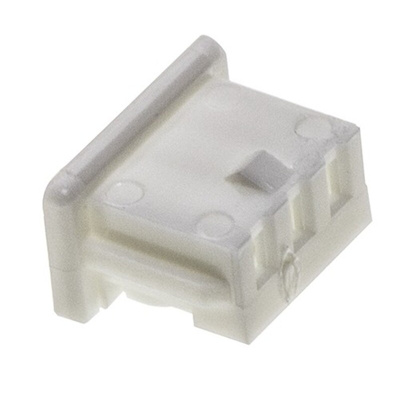

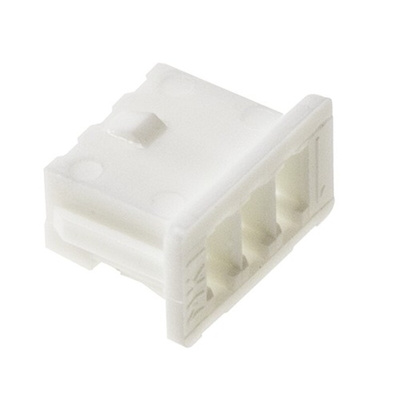

Molex Connector Housing, 3-Way Connector, 1.25mm Pitch - 51021 Series - 51021-0300

Put links in your circuitry under wraps with this connector housing from Molex. It's a female receptacle that secures conductors in your installation to achieve reliable signal transfers. With dimensions of 5.5 (L) x 3.2 (W) x 3.95mm (D), this compact component doesn't crowd your PCB. Plus, you can run three connections through the unit to simplify your setup. As it's made of polyester, this is a tough option that handles temperatures between -40°C and +85°C without breaking a sweat.

Features & Benefits

• Versatile unit handles wire-to-board and wire-to-wire connections
• Light weight of 34mg puts minimal strain on your PCB
• Polarised to prevent the incorrect insertion of conductors

Applications

• Factory automation
• Medical devices
• Consumer electronics
• Aerospace technology

Can I trust this connector housing to hold my conductors firmly?

Yes, it has a built-in friction lock that ensures secure mating and prevents accidental disconnections.

Approvals

UL (E29179); CSA (LR19980)

1.25mm Wire to Board - Molex PicoBlade™

Datasheet

Line Drawing

Application Specification - PicoBlade 125 DIP Type & SMT Type
