7TCA296000R2153 PAFS13/BL/10M, Adaptaflex Flexible Conduit, 12mm Nominal Diameter, Polyamide, Black, Кабелепровод

3204003
Номер производителя: 7TCA296000R2153 PAFS13/BL/10MПроизводитель: Adaptaflex
Цена за 1 катушку (10 метров)
11239.80 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

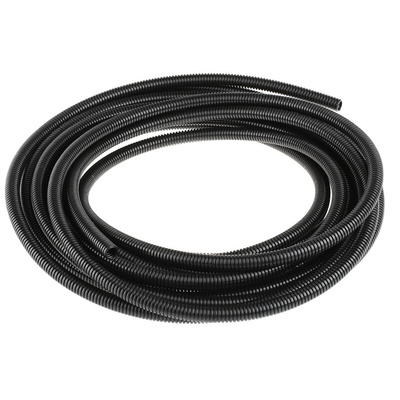

Adaptaflex Flexible Plastic Conduit, 25mm Bend Radius, 10m Length - PAFS Series - PAFS13/BL/10M

Choose this plastic conduit from Adaptaflex for reliable electrical cable protection. Thanks to its high fatigue strength, it's suitable for industrial use. A good degree of flexibility means the ducting can be used to safeguard moving components, like power cables in robotic machines. For safety in public areas, it has low smoke density and is halogen-free, so there's no risk of it emitting harmful fumes in the event of a fire. The conduit's polyamide construction resists corrosion and abrasive chemicals to deliver an extended service life in demanding settings.

Features & Benefits

• Finely pitched corrugated profile for a maximum cable-carrying capacity
• Wide operating temperature range of -5°C to +120°C, so compatible with harsh conditions
• Supplied in a 10m length and is easy to cut to size
• Resists the weathering effects of UV light for longevity

Applications

• Automotive manufacturing
• Process and packaging plants
• Food and beverage industry

Does a conduit improve electrical safety?

Yes, a conduit does improve the electrical safety of buildings as it protects wires from damage that could result in power faults. As this conduit is made from nylon, it also offers insulation to reduce the risk of electric shocks.

Adaptaflex PA/PI Conduit & Adaptalok®/Adaptaseal®/Adaptalok ATS® Fittings

A range of black flexible conduits and fittings to suit a wide variety of uses which include, use where public safety or where the integrity of electronic equipment are of concern or for robotic, rapid or continuous motion applications demanding high fatigue life and extra flexibility, also suited for low temperature environments.,Conduits are manufactured from modified Polyamide and are flame retardant, halogen free, have a low fire hazard (LFH) and offer resistance against chemicals and oils i.e. MEK, petrol, diesel, mineral oils, etc.,Fitting systems compatible with these Adaptaflex conduits are Adaptalok® for an IP66 rating, Adaptaseal® for an IP67 rating and Adaptalok ATS® for an IP68/69K rating.

Техническая спецификация
pdfChemical Resistance Chart
pdfInstruction Sheet - Cutting & Assembly Guide
pdfCatalogue - Adaptaflex Flexible Conduit Systems
pdfDatasheet - PAFS13/BL/10M
Внешний диаметр:
13мм
Диаметр - внутренний:
9.6мм
Длина:
10м
Материал:
Полиамид
Материал покрытия:
Uncoated
Минимальный радиус изгиба:
25 мм
Номинальный диаметр:
12мм
Рабочая температура - максимальная:
+120°C
Рабочая температура - минимальная:
-5°C
Серия:
PAFS
Степень защиты IP:
IP40, IP65, IP66, IP67, IP68, IP69K
Тип канала:
Flexible
Цвет:
Черный
