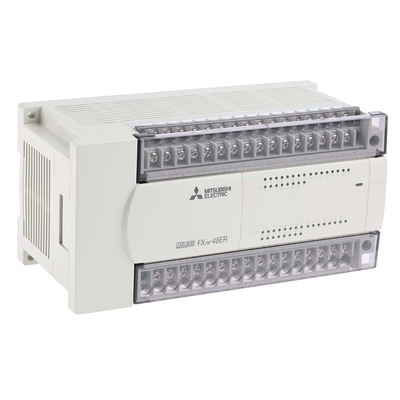

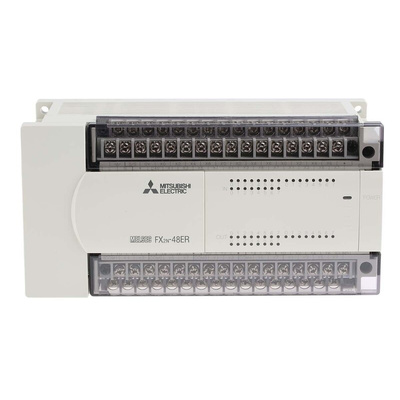

FX2N-48ER-ES/UL, Mitsubishi FX2N Series Series PLC I/O Module for Use with FX2N Series, Модуль

Mitsubishi Digital Expansion Module

The Mitsubishi digital expansion module is designed to use with FX1S, FX1N and FX2N PLCs. This module has 24 input and 24 relay type output points. It is attached to the right-hand end of the base unit or digital expansion blocks and requires an external supply of 100Vac to 240Vac. The input and output channels are added depending upon the size of the base unit.
Additional Modules for Mitsubishi FX1S, FX1N & FX2N PLC's
Products in this range are for use with FX1S, FX1N and FX2N PLC unless specified otherwise. All are DIN rail mount and are 90mm high and 87mm deep. The width varies and is tabled below.
All of the following products, except the Extension Cable, attach directly to the right-hand end of the previous unit, block or module using the short integral lead.

Features and Benefits

Inputs are opto-isolated
24VDC sink or source selectable to suit NPN or PNP sensors
All outputs are relay type.
Response time 10ms

Applications

Industrial automation
Robotics
Automobile industry

Certifications

IP10 rated
CE
UL/cUL certified

FX 2n Series Programmable Controller Technical Data Sheet

FX2N-48ER-ES-UL Datasheet
