SES Sterling PVC Black Cable Sleeve, 8mm Diameter, 25m Length, Кабельная муфта

SES Sterling Cable Sleeve

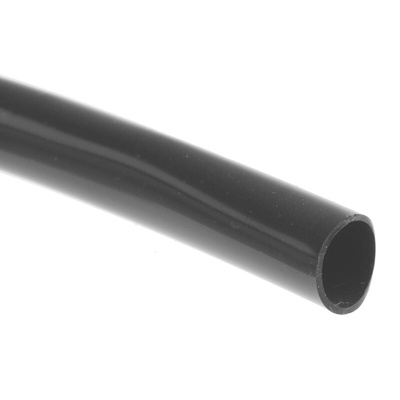

The SES black cable sleeve has a sleeve diameter of 8mm and the length of 25mm. It is made of PVC insulation for mechanical protection of the electrical cables. This sleeve is used for transporting fluids at low pressure and ambient temperature. It has good resistance to ozone, ageing, acids and friction.

Features and Benefits

Dielectric strength is 20kV/mm
Tensile strength at break is 20MPa
Does not spread flames in the event of a fire
Maximum cable diameter is 6mm
Minimum cable diameter is 5mm
Operating temperature ranging between -20°C and 90°C
Wall thickness is 0.52mm

Applications

Protection
Insulation

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
DIN 40.621
NF C 93 641
UL94 V-2
VSM 11930

Plio-super insulating sleeving Data Sheet
