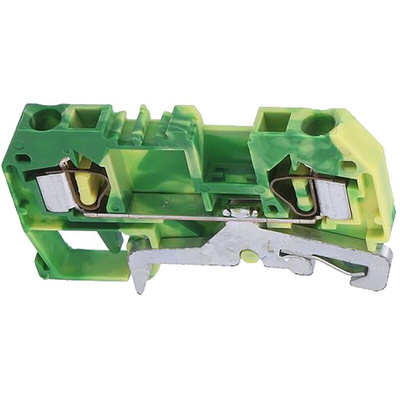

281-907, Wago 281 Series Green/Yellow Earth Terminal Block, 4mm², Single-Level, Cage Clamp Termination

Protective terminal block for 2 conductors

Protective terminal blocks for mounting on TS 35 type DIN Rails. The terminals feature cage clamp® technology for ultra-quick connection.

Features and Benefits

• 2 conductors (1 input and 1 output)
• Front-wired (four versions are available to receive wire sections 2.5 mm² to 4 mm²)
• End plates available, designed for standard terminal blocks

870 Series

Compact screwless DIN rail mount terminals suitable for use with TS35 ’Top Hat’ rails. The compact size of the terminal is possible due to the new cage clamp designed to satisfy the need to reduce cabinet space on site.

Accept cables 0,08 - 2,5 mm²/4 mm² flexible wire
Front cabling enables further space saving
Rated at: 500V/6kV/24A
Jumper bar rated current: 18A
Suitable marker cards and labels also available (each pack contains 5 cards, with 100 markers per card)

Grounded Din terminal 4mm2
