89110-0101HA, 3M 10-Way IDC Connector Socket for Cable Mount, 2-Row, Разъем

3M 891 Series 2.54 x 2.54mm IDC Ribbon Cable Sockets

From 3M, the 891 Series ribbon cable connectors feature military polarization and centre bumps. They terminate faster than two-piece sockets and their sword packaging makes easy loading of manual and semi-automatic assembly equipment.

These 891 series IDC ribbon cable socket connectors have a double-recessed cover which allows cable to be terminated from either side and are supplied preassembled.
Strain reliefs (192-7530 typically) are available separately

Features and Benefits

• Preassembled, terminates faster than two-piece sockets
• Sword packaging makes easy loading of manual and semi-automatic assembly equipment
• Bumps prevent premature latch locking during shipment
• Optional double-sided adhesive pull tab for easy unplugging
• Double-recessed cover for cable terminating from either side eliminates need for single-recessed cover connectors

Applications

Ribbon cables are known for their space saving and high data transfer capabilities. They are often used to connect internal computer peripherals, and less frequently for external connections. They are known for being well suited to mass termination with IDC (insulation displacement connectors.) This quick and practical termination solution means that ribbon cabling is a common standard in electronics and computing.

Why choose 3M?

3M are a reliable name in computing and electronic connection. Combined with RS Components excellent customer service, 3M provides a range of specialist connectivity solutions for a variety of industries and applications.

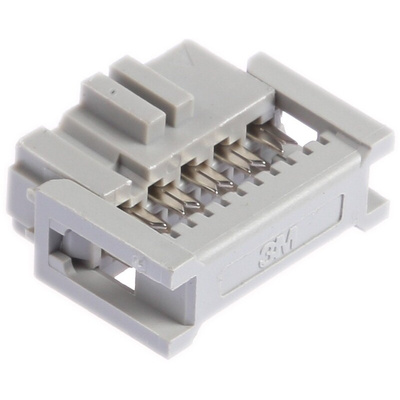

3M IDC Connector Socket, 10 Way, 2 Row - 891 Series - 89110-0101HA

Meet your ribbon-cable connection needs with this insulation displacement contact (IDC) socket from 3M. It's a handy component, designed to simplify the job of terminating your cables for maximum productivity. It has sharp contact points that pierce the insulation and make contact with the multiple wires inside the flattened cable. This quick termination solution eliminates the need to strip the shrouded wires. The female unit features 10 contacts across two rows and has a standard 2.54mm pitch.

• Comes preassembled, for quick termination• Unplugs smoothly with optional double-sided adhesive pull tab• Sword packaging enables easy loading of manual and semi-automatic assembly equipment• Double-recessed cover, so you can terminate the cable from either side

Applications

• Computer drives• Smartphones• Laptops

What should I factor in when selecting my IDC?

First, think about the number of contacts you need – IDCs come with different numbers of pins or connections. Then, consider gender – IDCs can come in a male version (also known as a plug) or a female version (known as a socket or header). It's also worth considering the distance or pitch you need between each contact, as well as which mounting type you prefer.

891 Series 2.54 x 2.54mm IDC Ribbon Cable Sockets
