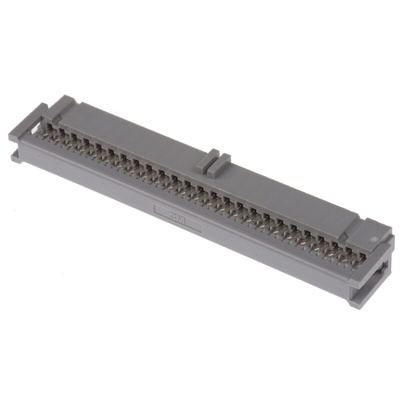

89150-0101HA, 3M 50-Way IDC Connector Socket for Cable Mount, 2-Row, Разъем

3M 891 Series 2.54 x 2.54mm IDC Ribbon Cable Sockets

From 3M, the 891 Series ribbon cable connectors feature military polarization and centre bumps. They terminate faster than two-piece sockets and their sword packaging makes easy loading of manual and semi-automatic assembly equipment.

These 891 series IDC ribbon cable socket connectors have a double-recessed cover which allows cable to be terminated from either side and are supplied preassembled.
Strain reliefs (192-7530 typically) are available separately

Features and Benefits

• Preassembled, terminates faster than two-piece sockets
• Sword packaging makes easy loading of manual and semi-automatic assembly equipment
• Bumps prevent premature latch locking during shipment
• Optional double-sided adhesive pull tab for easy unplugging
• Double-recessed cover for cable terminating from either side eliminates need for single-recessed cover connectors

Applications

Ribbon cables are known for their space saving and high data transfer capabilities. They are often used to connect internal computer peripherals, and less frequently for external connections. They are known for being well suited to mass termination with IDC (insulation displacement connectors.) This quick and practical termination solution means that ribbon cabling is a common standard in electronics and computing.

Why choose 3M?

3M are a reliable name in computing and electronic connection. Combined with RS Components excellent customer service, 3M provides a range of specialist connectivity solutions for a variety of industries and applications.

3M IDC Socket, 50 Way, 2 Row - 891 Series - 89150-0101HA

Make the process of connecting multiple ribbons efficient with this 3M IDC (insulation displacement contact) connector socket. This reliable connection system has extensive capacity for terminations, with 50 separate contacts across two rows. The key feature of an IDC such as this one is its sharp points, which pierce the insulation of the ribbon cable. These metal-alloy blades contact the conductive wires inside the ribbon, allowing electrical current to flow. It's a simple and quick termination method with no need for tools or stripping back the shrouded wires.

• Preassembled for fast termination • Optional double-sided adhesive pull tab for easy unplugging• Sword packaging makes for easy loading of manual and semi-automatic assembly equipment• Centrally placed bumps prevent premature latch locking during shipping

Applications

• Smartphones • Low voltage devices • SSDs (solid state drives)

Why do you use IDC connectors with ribbon cable?

Ribbon cable is designed to be used with multi-contact IDC connectors. It couples in such a way that many IDC connections can be made at once, saving time in applications where multiple connections are needed. These connectors can often be re-used if care is taken when removing the cable.
