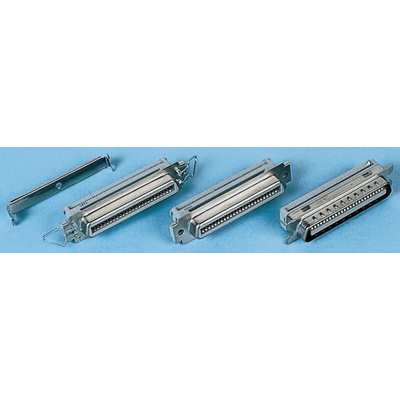

3549-2002, 3M, 3549 Female 24 Pin Right Angle Cable Mount SCSI Connector 2.16mm Pitch, IDT, Разъем

Metal Delta Ribbon Connectors

Metallic front face for excellent protection from EMI/ESD
1.27mm pitch at rear level to receive strip cable
Body is shiny nickel steel-coated
Insert threading 4.40 UNC
Temperature range -58°C to +105°C

3M SCSI Connector, 1A Current Rating, IDT Termination - 3549-2002

Get your devices talking among themselves with this SCSI connector from 3M. It links up accessories like SATA disk drives to your computer in a jiffy. As the unit is rear-mounting, you can ground the connection directly to your cabinet. This minimises the risk of shocks and electrical fires. Thanks to the sturdy contact design, you can insert and withdraw cabling without risking damage, making this a versatile option for use around the office.

• Copper contact is highly conductive for fast data transmission
• Gold plating provides additional protection against corrosion for long-lasting use
• Wide operating temperature range between -55°C and +105°C for use in demanding settings

Applications

• Office electronics
• Data centres
• IT networks

What's the IDT termination method?

Integrated termination technology (IDT) is a high-speed communication system that keeps signals intact to make every transmission crystal-clear.

Standards

MIL-G-45204

Mini Delta Ribbon (MDR)

Cable mount plugs and PCB mount receptacles with pre-loaded ribbon contacts for long life
Finger releasable latching backshells for cable mounting applications

A Mini Delta Ribbon (MDR) system designed for high density I/O applications on a 1.27mm pitch.

TS-0022-11 Wiremount Metal Faced Socket Data Sheet
