3505-8020, 3M Strain Relief Clip

3M Socket Retainer Clips for 2500 Series 2.54mm x 2.54mm Low Profile Headers

Socket retainer clips for securing mating socket connectors to the 2500 Series 2.54mm x 2.54mm low profile headers. These socket retainers are made from stainless steel with a grey polyurethane coating and fit a variety of connector sizes.
Part numbers 3505-80XX are for use with sockets without a strain relief
Part numbers 3505-81XX are for use with sockets that have a strain relief

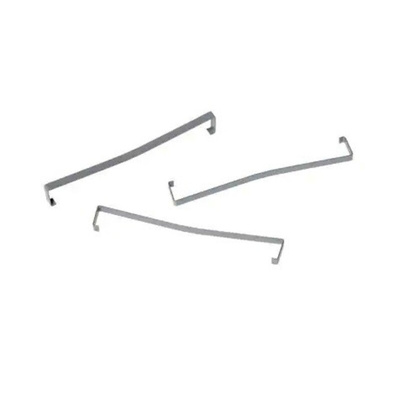

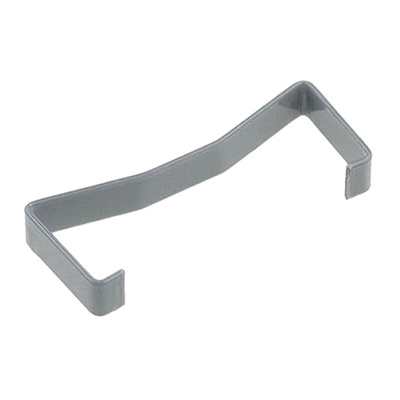

3M Strain Relief Clip For Use With 2500 Series Headers, Pack of 10 - 3505-8020

When you need to secure PCB headers in vibrating systems, turn to this strain relief clip from 3M. It's made of stainless steel that's resistant to corrosion, so you can be sure of long-term performance in harsh environments. A polyurethane coating helps to protect it from abrasion and also serves as insulation to prevent electric shocks, ensuring safe operation. This clip is designed for sockets without strain relief that have 20 contacts.

• Compact dimensions of 7.9 (height) x 33.5mm (width) for use in setups with limited space
• Easy clip-on installation needs no tools, saving time and effort
• Can withstand temperatures of up to +105°C, so suitable for use in demanding industrial conditions

Applications

• Automotive equipment
• Machine tools

How do I install this strain relief clip?

To install this clip, you simply need to hook it onto the PCB socket from its sides.

0.100\

Line Drawing - Four Wall Header
