3505-8026, 3M 3505 Series Strain Relief Clip

3M Socket Retainer Clips for 2500 Series 2.54mm x 2.54mm Low Profile Headers

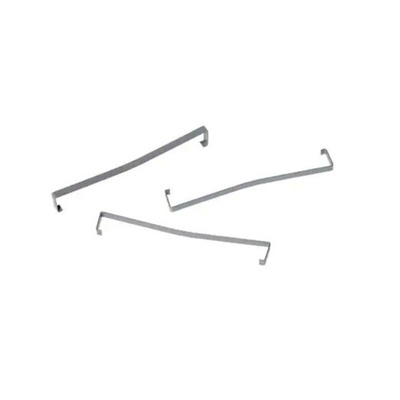

Socket retainer clips for securing mating socket connectors to the 2500 Series 2.54mm x 2.54mm low profile headers. These socket retainers are made from stainless steel with a grey polyurethane coating and fit a variety of connector sizes.
Part numbers 3505-80XX are for use with sockets without a strain relief
Part numbers 3505-81XX are for use with sockets that have a strain relief

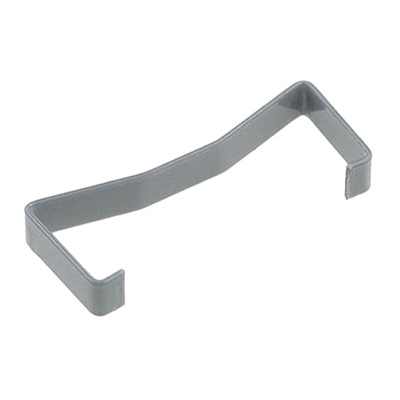

3M Strain Relief Clip For Use With 2500 Series Headers, Retainer Type, Pack of 10 - 3505-8026

Protect your circuit board's connections against movement with this 3M strain relief retainer clip. By locking connector contacts in place, it minimises disruption from vibrations to give you reliable connections. As the device can hold up to 26 contacts, it protects numerous connections at once for efficient system coverage. An insulating PUR coating eliminates the risk of current loss. For easy compatibility, use this clip with PCB headers in the 2500 series.

Features & Benefits

• Thickness of 2.8mm for easy assembly in compact setups
• Hard-wearing stainless steel body for effective impact protection
• Comes in packs of 10 for convenience

Applications

• Control devices
• Data management systems
• Industrial automation

Can I use this retainer clip with connectors that have built-in strain relief?

No, these clips aren't suitable for connectors with integrated strain relief.

0.100\

Line Drawing - 3505-8026

3238270_Line Drawing
