3505-8110, 3M Strain Relief Clip

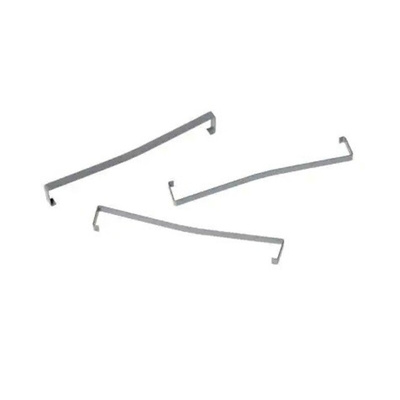

3M Socket Retainer Clips for 2500 Series 2.54mm x 2.54mm Low Profile Headers

Socket retainer clips for securing mating socket connectors to the 2500 Series 2.54mm x 2.54mm low profile headers. These socket retainers are made from stainless steel with a grey polyurethane coating and fit a variety of connector sizes.
Part numbers 3505-80XX are for use with sockets without a strain relief
Part numbers 3505-81XX are for use with sockets that have a strain relief

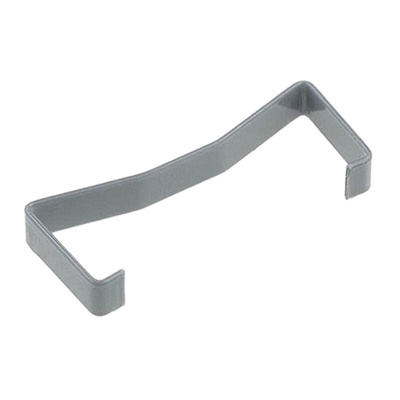

3M Strain Relief Clip For Use With 2500 Series Headers, Stainless Steel Material - 3505-8110

If you're looking for a compact tool to hold your 2500 series PCB sockets fast in vibrating conditions, choose this durable retainer clip from 3M. It's made of stainless steel, so it can withstand the rigorous mechanical impact associated with industrial applications. The polyurethane coating on this device provides insulation to protect you from electric shocks, while a small uncoated area allows current to flow to the connectors.

• Clip-on installation eliminates the need for soldering, so it's easy to remove and reuse
• Low-profile design for installation in confined spaces
• 13.5mm height to accommodate sockets with strain relief

Applications

• Vending machines
• Medical and dental equipment
• Consumer electronics

Is this strain relief clip flame-retardant?

Yes, in the event of a fire, the polyurethane coating of this strain relief clip will stop burning in a short time.

3M Four Wall Header Data Sheet

Line Drawing - Four Wall Header
