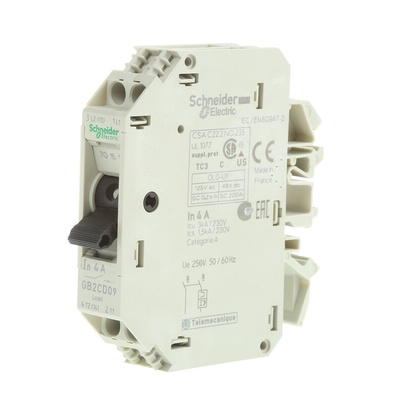

GB2CD09, Schneider Electric Thermal Circuit Breaker - 1P + N Pole DIN Rail Mount, 4A Current Rating, Автоматический выключатель

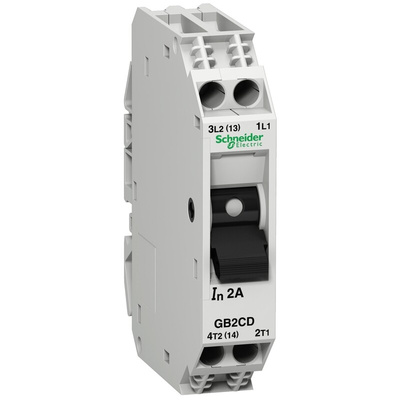

GB2 Thermal Magnetic Circuit Breakers

DIN rail mounted, mechanically reset protection devices.
Short circuit and overload protection for control circuits and associated industrial equipment, e.g. solenoid valves, electric brakes and transformers, etc
Rated operational voltage of 415V
74mm high; depth 67mm (1P) 70mm (2P)

Standards

IEC947-2

Schneider Electric Thermal Circuit Breaker, 4A Current Rating, 2W Power Dissipation Per Pole - TeSys GB2 Series - GB2CD09

Blowing a fuse when faced with dangerous currents? Get this thermal circuit breaker from Schneider Electric to curb downtime and prevent equipment damage. It detects overcurrents by sensing a rise in temperature and cuts power to your circuit to keep your machinery safe and sound. The unit has a current rating of 4A for use in low-power systems. A long mechanical lifespan of 8,000 cycles means it has the stamina to protect your equipment for the long haul. Thanks to its compact dimensions of 74 (L) x 15 (W) x 67mm (D), this is a sure fit for crowded setups.

• Toggle switch for easy resets
• Designed for DIN rail or plate mounting to give you installation options
• Wide operating temperature range between -20°C and +60°C for use in harsh conditions

Applications

• Automotive manufacturing
• Industrial assembly lines
• Distribution boards
• Medical equipment

Can I safely handle this thermal circuit breaker without getting shocked?

Yes, its IP20 rating means it's finger-safe and protected against objects larger than 12mm in size, so you can handle the unit without risking an electric shock.
