XY2CD111, Telemecanique Sensors OsiSense XC Series Cable Pull Limit Switch, NO/NC, IP66, 240V ac Max, 10A Max

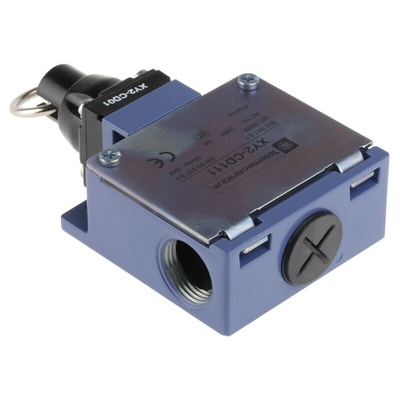

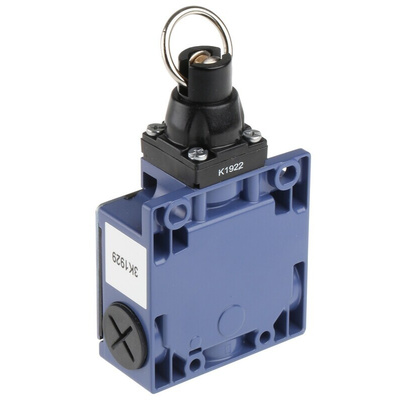

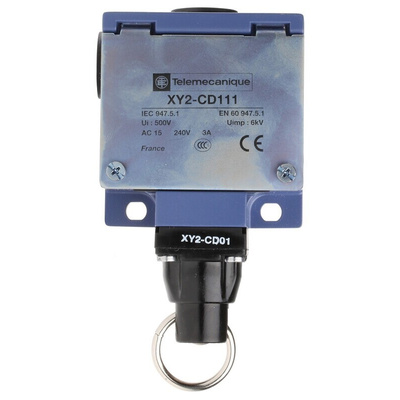

Telemecanique Electric Eye-let Pull Limit Switch XY2-CD

A position switch with cable control is an ideal form of emergency stop within large environments such as factories and production lines. Telemecanique Sensors presents the XY2CD, this position sensor is controllable from anywhere within a work area. Also known as a cable pull, rope pull or cord pull, cable or rope can be attached to the eye-let actuator, once the cable is pulled, the limit switch is triggered. This type of switch allows all users in an industrial or production setting access to an emergency stop no matter where they are situated.

The WY2CD can be connected via screwed terminal strips and also connected to a sensor via 3 PG11 sealing gland inputs. Featuring a blue unit, with plastic head has a body made from Zamak offering high impact and corrosion resistance whilst being heavy-duty. With a life cycle of up to 1500000 cycles, this switch is durable, rugged and reliable.

Features and Benefits:

• 3 A / 240 V AC switching capacity
• 6m trigger cable maximum length
• 10A conventional enclosed thermal current
• 1 NC + 1 NO
• Snap action
• 237 daN operating head and 36 daN operating ring

Protection ratings & Safety features:

• IP66 conforming to IEC 60529
• Certifications CCC and CE
• Overvoltage category Class I conforming to EN/IEC 61140 and Class I conforming to NF C 20-030

Applications - Main applications for this switch are to ensure multiple users have access to an emergency stop wherever they are situated. Other applications include:
• Industrial
• Power Management
• Safety Control
• Production
