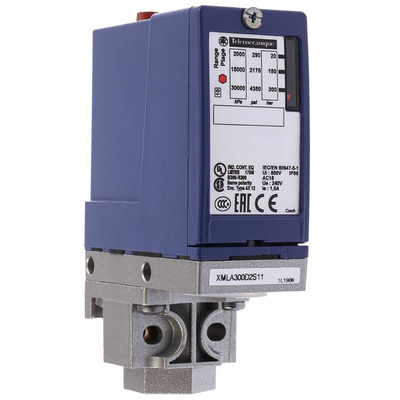

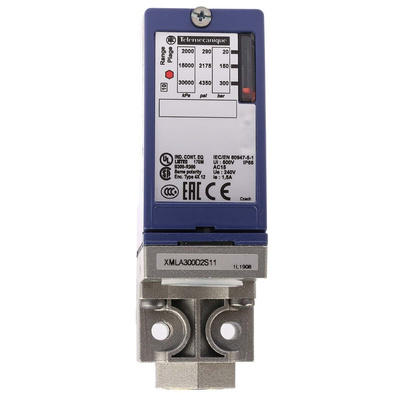

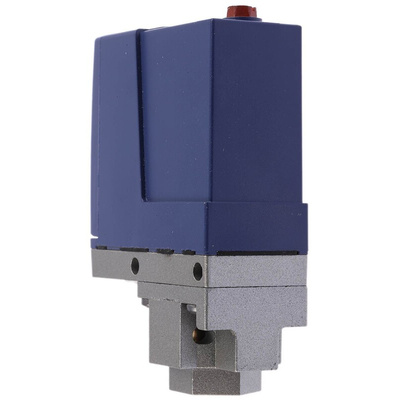

XMLA300D2S11, Telemecanique Sensors Pressure Sensor, 20bar Min, 300bar Max, Relay Output, Differential Reading, Датчик давления

OsiSense XMLA Pressure Switches

Schneider Electric XMLA pressure switches for control circuits are used to control the pressure of hydraulic oils, fresh water, sea water, air, steam, corrosive fluids, or viscous products. The XMLA pressure and vacuum switches have a fixed differential and are for detection of a single threshold.

Fixed differential
External pressure setting window available
1 NO & 1 NC snap acting contacts
Temperature range: –25 to +70 °C
Enclosure rating: IP65 with plug-in connector, IP66 with terminal connections
Operating rate: up to 120 operations / min. for diaphragm and 60 / min. for piston
Media connection: 1/4" NPT
Conduit connection: 1/2" NPT

Note

Pressure quoted is 'per cycle' and (occasional)

Telemecanique Sensors Pressure Sensor, 3A AC / 100mA DC Maximum Current, G1/4 Connection - XMLA Series - XMLA300D2S11

Stay on top of system pressure with this sensor from Telemecanique Sensors. It reads and controls the flow of hydraulic fluids, keeping your operations running without a hitch. Thanks to a wide reading range between 20 and 300 bar, it's a versatile choice. The zinc alloy enclosure is resistant to corrosion, so holds its own in humid settings. A repeat accuracy rating of 2% means this sensor gives precise readings to keep you in the picture.

Features & Benefits

• Silver contacts are highly conductive for efficient performance
• IP66 rated for protection against high-pressure water jets and dust ingress
• Broad operating temperature range between -25°C and +70°C means it's suitable for extreme environments
• Supply voltage range of 120 to 240V AC or 250V DC for versatility
• Fixed differential type means it accurately detects a single threshold

Applications

• Industrial automation
• Energy generation
• Automotive manufacture

How do I connect this pressure sensor?

You can make an electrical connection to the sensor with a PG13.5 cable gland, and a process connection using a G1/4 port, so installation's simple.
