1639274, Fluke TL81A Electronic Test Lead Kit, CAT II, 10A, Щупы для мультиметра

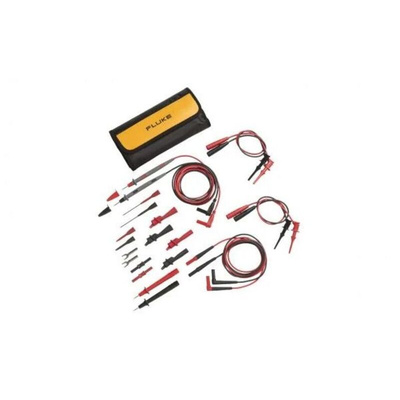

Fluke TL81A Deluxe Electronic Set

Comprehensive set for use in low energy, electronic test applications that require fine probing. Compatible with Fluke and most other multimeters,Supplied in a handy vinyl soft wallet.

1.0m silicone lead terminated at one end with 4mm shrouded right angled plug and stainless steel test probe on the other end. Rated 10A
Insulated crocodile clip. Rated 5A
Insulated probe tip extender. Rated 3A
1.0m silicone modular test lead terminated at one end with 4mm shrouded right angled plug and straight 4mm on the other end. Rated 10A
Modular hook-style clip test lead with 4mm connector. Rated 5A
Modular pinch style clip with 4mm connector. Rated 5A
Modular crocodile clip with 4mm connector. Rated 5A

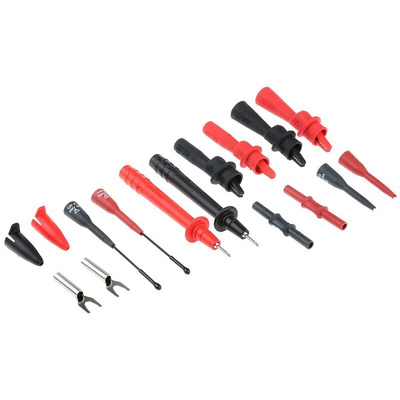

Slide on IC probe tip adaptor (rated 3A) and test lead couplers
2 bare spade plugs with 4mm connectors, rated up to 10A, 60V dc max

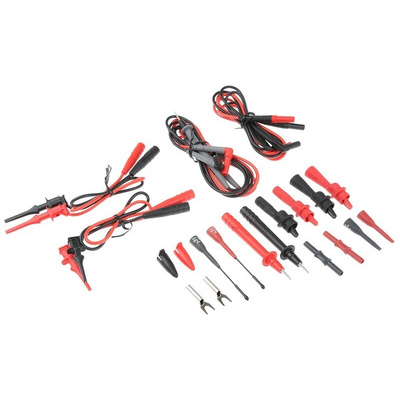

TL81A contents 2 each (1 red and 1 black):

FLUKE Test Lead Kit, For Digital Multimeter, Crocodile and Hook Clips - TL81A

Check the ins and outs of your electronic appliances with this FLUKE test lead kit. As it packs probes, clips and leads into a single bundle, it brings many handy testing tools into arm's reach. Don't worry about keeping up with your hardware's electrical flow, as the set handles everyday loads up to 10A. Taking measurements from tiny components is no trouble thanks to the kit's 1mm test probe tips. By plugging into a multimeter (such as 156-730) using colour-coded banana plugs, the kit's leads are set up in no time so you can get testing straight away.

Features & Benefits

• Insulated alligator clips open up to 7mm, letting them latch to many common conductor sizes
• Spring-loaded probe tips to ensure close contact with surfaces
• Conductive gold and stainless steel probe tips cut resistance for precise readings
• Hard-wearing silicone lead jacket stands up to harsh heat and moisture

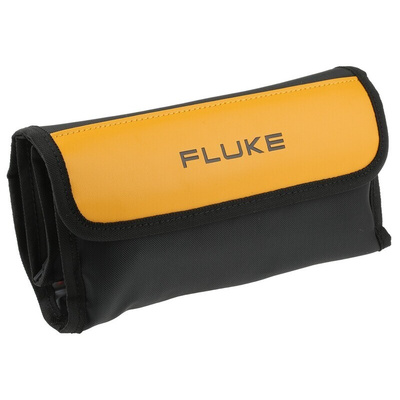

• Compact Velcro-sealed case for comfortable carrying and handling

Applications

• Packing plants
• Battery production
• Material handling

Do the probes in this test lead kit have protective shrouds?

Yes, all the probes and clips in this kit come with insulated shrouds, keeping you safe around hazardous electrical loads.

’Buy a Fluke, Get one Free’ is back!!
Between March 1st, 2024 and August 31st, 2024, the customer spends £150 or more on a qualifying Fluke product (Fluke Industrial, Fluke Calibration, Fluke Networks, or Beha-Amprobe).
Customer claims their tool online at: www.fluke.co.uk/freefluke
A proof of purchase in the form of a receipt or invoice is required.

Standards

IEC1010 Cat II 300V

Datasheet - TL81A
