14526EZ8B-500-07C, 3M Male MDR to Male MDR Parallel Cable, 5m, Grey Sheath, Кабельная сборка

Cable assemblies for data interconnection

Cables with Mini Delta Ribbon (MDR) male connectors, ideally suited to LVDS / TMDS technology, HF transmission (up to 1.6 Gbps).
Use a 100 Ω shielded cable, twisted pair by pair, giving optimum protection against noise and EMI / RFI problems.
Matching (controlled-impedance) female MDR sockets are available, stock numbers beginning with 614-8912.

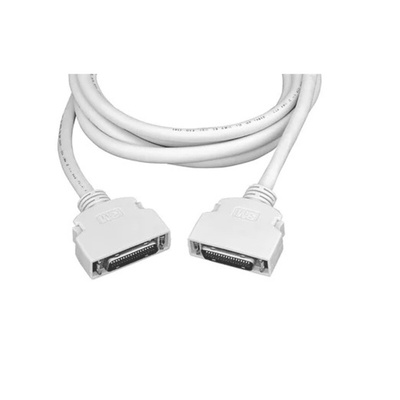

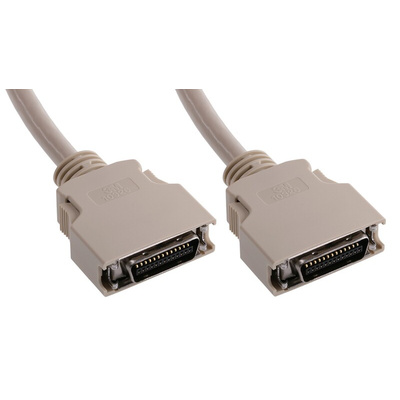

3M Parallel Cable, 26-Pin Male MDR Connectors, 5m Length - 14526EZ8B-500-07C

Use this parallel cable from 3M for high-speed digital transmissions between peripherals such as computers and printers. The cable, with its mini delta ribbon connectors, rapidly relays data at up to 1.6Gbps. It offers maximum protection against EMI/RFI disruptions thanks to the 100Ω shielding and twinaxial formation of the wires.

• Quick-release latches for easy and reliable plugging and unplugging
• Tough ABS connector housings effectively protect delicate contacts
• PVC cable jacket resists chemical and abrasive damage for extended durability

Applications

• Legacy computer technologies
• Manufacturing and assembly lines
• Food and beverage production

What are the voltage and current ratings of this parallel cable?

This parallel cable has a voltage rating of 30V and current rating of 1A.

At what temperatures can I use this parallel cable?

This cable has a wide temperature operating range of -20°C to +75°C, so you can rely on it in challenging environments.
