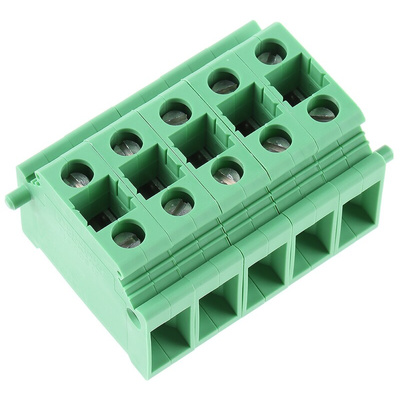

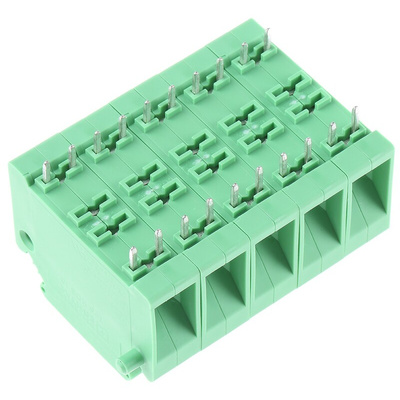

1704020, Phoenix Contact KDS10 Series PCB Terminal Block, 1-Contact, 10mm Pitch, Through Hole Mount, 1-Row, Screw Termination

Phoenix Contact COMBICON KDS 10mm PCB Terminal Block

Modular terminals with voltage and high current ratings, and reliable mechanical anchoring
Rugged construction, incorporates 4 solder pins and is side stackable
Wire acceptance:
16mm² solid, 10mm² standard
Rec. PCB hole dia. 1.4mm
Rated at 57A/250V
Temperature Rating -40°C to 120°C

Approvals

UL (E60425); CSA (LR13631)

Phoenix Contact Modular Feed Through Terminal, 10 mm Pitch - KDS10 - 1704020

This terminal block forms part of the Phoenix Contact COMBICON range and provides a compact conductor connection for PCBs (printed circuit boards). The 4-pin design is side-stackable, meaning you can slide and lock together multiple units to form longer strips. It has a high current-carrying capacity and can accept up to 76 A without overheating.
The unit has durable components and robust construction. Its screw connections are flexible to minimise damage to wires. A built-in locking system holds conductors firmly in place and means there's no need for re-tightening. This component is attached to a PCB using wave-soldering technology for a join with outstanding mechanical and electrical integrity.
Phoenix Contact PCB terminal blocks have uncomplicated designs that are easy to service. Units are supplied pre-assembled to reduce mounting costs and save on installation time. The range features options for the efficient packing of circuit boards as well as connecting them with peripherals.

• Straight body orientation
• Female connector
• Made from green polyamide
• Through-hole mounting type
• Single contact
• 2 rows
• Voltage rating of 630 V
• Pitch of 10 mm
• Dimensions of 36.8 (length) x 10 (width) x 28.7 mm (depth)
• KDS10 series

Approvals

UL (E60425); CSA (LR13631)
