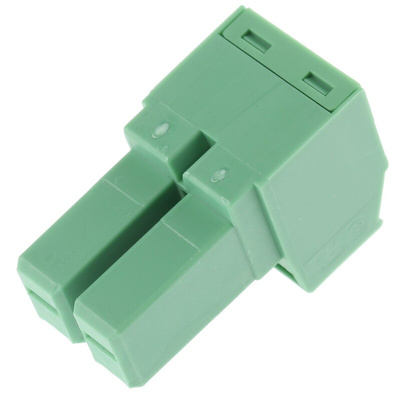

1804904, Phoenix Contact 7.62mm Pitch 2 Way Right Angle Pluggable Terminal Block, Plug, Cable Mount, Screw Termination

Phoenix Contact Power COMBICON PCB Connectors - 7.62mm

These COMBICON connectors from Phoenix contact are brilliant and greatly built PCB connectors. With a universal pitch of 7.62mm to support a huge variety of applications and a screw connection method for a strong and reliable connection, these connectors easily allow you to connect a cable-to-board. Phoenix connections are well-known worldwide so you will easily be able to design these connectors into any design thanks to the connection technologies known design. Not to mention, integrated double steel springs provide additional safety in the event of temperature and power fluctuations, however, having a low-temperature rise thanks to its maximum contact force means this is just a backup safety feature.

Housings are made from a strong and durable green polyamide material with the contacts being Cu (Copper) alloy. All PC connectors in this series feature a 7.62mm, a current rating of 20 A, a cross-section of 4mm² and have a different amount of positions.

Features and benefits:

• Double steel spring provides extra safety - preventing temperature and power fluctuations


• Allows connection of two conductors


• Low-temperature rise, thanks to its maximum contact force


• Worldwise use thanks to the connection technology


• Screw connection - reliable hold onto your cable for optimum system reliability


• PCB Connectors make it effortless connecting to wires to a PCB

Applications:

The PC COMBICON connectors can be used in the below applications, however, are not limited to:

• Instrumentation


• Control and measurement


• Industrial electronics


• Control wiring

How much wire jacket should I strip?

Phoenix Contact recommends you strip 7mm of wire jacket & any armour for these PCB connectors. Once your cable has been stripped to an appropriate length exposing the bare metal, simply push-in your cable and lock it down with the M3 screw.

Phoenix Contact PC 4/2-ST-7.62 Series Pluggable Terminal Block, 20A, Screw Termination - 1804904

This Phoenix Contact pluggable terminal block, with a current rating of 20A and a vibrant green colour, is a versatile and reliable solution for electrical connections in various industries. The pluggable nature of this terminal block makes installation and maintenance a breeze, while the tin plated contacts ensure a secure connection every time. Ideal for automation, electronics, electrical, and mechanical applications, this terminal block offers outstanding performance and durability.

Features & Benefits

• Tin plated contacts for excellent conductivity
• Screw terminal connection method for easy installation
• Nylon material for robustness and longevity
• Cable mount design for flexibility in installation
• 20A current rating for handling high power loads
• Green colour for easy identification in complex wiring setups

Applications

• Ideal for use in printed-circuit boards
• Suitable for automation systems and control panels
• Perfect for electrical installations in industrial settings

Can it handle high current loads?

Yes, the Phoenix Contact pluggable terminal block has a current rating of 20A, making it suitable for applications with high power requirements.

Is it easy to install?

Yes, the terminal block features a screw terminal connection method, ensuring quick and hassle-free installation.

Will it endure harsh industrial environments?

Yes, the terminal block is made of durable nylon material, making it resistant to wear and tear in challenging conditions.

Can it be used in control panels?

Yes, the terminal block is ideal for use in control panels, providing a reliable connection solution for various electrical components.

Is it suitable for printed-circuit boards?

Yes, the Phoenix Contact pluggable terminal block is designed to be used with PCBs, offering a secure and efficient connection solution.

Phoenix Contact COMBICON 7.62mm Two Part Terminal Blocks

Approvals

UL94V-0

CUL Approval

BV Approval type approval

CSA Approval

NV Approval

GermanLoyd type approval

LR Approval

Datasheet

Line Drawing - PC 4 Series
