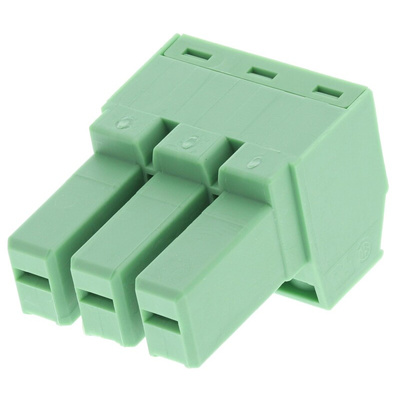

1804917, Phoenix Contact 7.62mm Pitch 3 Way Right Angle Pluggable Terminal Block, Plug, Cable Mount, Screw Termination

Phoenix Contact Power COMBICON PCB Connectors - 7.62mm

These COMBICON connectors from Phoenix contact are brilliant and greatly built PCB connectors. With a universal pitch of 7.62mm to support a huge variety of applications and a screw connection method for a strong and reliable connection, these connectors easily allow you to connect a cable-to-board. Phoenix connections are well-known worldwide so you will easily be able to design these connectors into any design thanks to the connection technologies known design. Not to mention, integrated double steel springs provide additional safety in the event of temperature and power fluctuations, however, having a low-temperature rise thanks to its maximum contact force means this is just a backup safety feature.

Housings are made from a strong and durable green polyamide material with the contacts being Cu (Copper) alloy. All PC connectors in this series feature a 7.62mm, a current rating of 20 A, a cross-section of 4mm² and have a different amount of positions.

Features and benefits:

• Double steel spring provides extra safety - preventing temperature and power fluctuations


• Allows connection of two conductors


• Low-temperature rise, thanks to its maximum contact force


• Worldwise use thanks to the connection technology


• Screw connection - reliable hold onto your cable for optimum system reliability


• PCB Connectors make it effortless connecting to wires to a PCB

Applications:

The PC COMBICON connectors can be used in the below applications, however, are not limited to:

• Instrumentation


• Control and measurement


• Industrial electronics


• Control wiring

How much wire jacket should I strip?

Phoenix Contact recommends you strip 7mm of wire jacket & any armour for these PCB connectors. Once your cable has been stripped to an appropriate length exposing the bare metal, simply push-in your cable and lock it down with the M3 screw.

Phoenix Contact PC 4/ 3-ST-7.62 Series Pluggable Terminal Block, 20A, Screw Termination - 1804917

This pluggable terminal block by Phoenix Contact is a reliable solution designed for automation, electronics, electrical, and mechanical industries. The terminal block features a green colour, screw connection, and can handle a current rating of 20A efficiently. Its compact design and high quality material make it a go to option for various applications.

Features & Benefits

• Designed with nylon material for durability
• Features a screw termination method for secure connections
• Pluggable terminal block type for easy installation
• Suitable for applications requiring a current rating of 20A

Applications

• Used for connecting wires in control panels
• Ideal for power distribution applications
• Perfect for printed-circuit board connections
• Suitable for automation equipment
• Used in electrical control systems

Can it handle high voltage applications?

Yes, this pluggable terminal block has a voltage rating of 1 kV, making it suitable for high voltage requirements.

Will it work for printed-circuit board connections?

Yes, this terminal block is designed for printed-circuit board connections, ensuring a secure and reliable connection.

Is this terminal block easy to install?

Yes, the plug type design and screw termination method of this terminal block make it easy to install in various applications.

Can it accommodate multiple wire connections?

Yes, this terminal block allows for multiple wire connections, offering flexibility in wiring configurations.

Is it suitable for automation equipment?

Yes, this pluggable terminal block is ideal for automation equipment due to its reliable design and secure connections.
