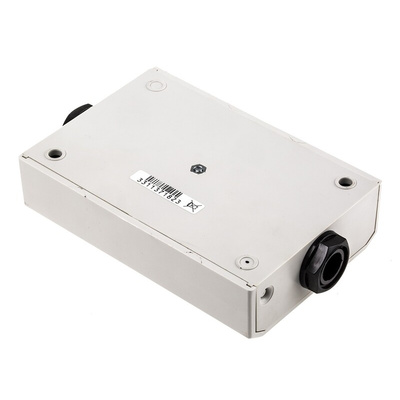

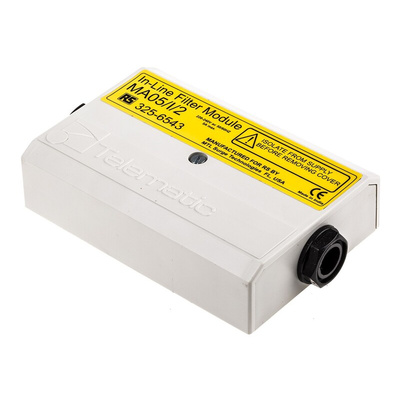

RS PRO 5A 240 V ac 50/60Hz, Wall Mount RFI Filter, Screw, Single Phase, Фильтр

RS PRO 5 A 240 V AC 50/60 Hz, Wall Mount RFI Filter, Screw

This RFI filter is a powerful component that can be connected to electronic devices to protect them from harmful radio frequency interference (RFI). It’s part of our tried-and-tested RS PRO range.

RFI can hamper the performance of radio equipment, as well as cause damage to electronic circuits, which is why it's so important to safeguard your devices. This RFI filter prevents unwanted frequencies from harming your equipment. It can handle electrical surges of up to 6000 V (volts) and currents of 3000 A (ampere), meeting BS (British Standard) 6651:1992 Appendix C for lightning protection.

The filter can be wall-mounted near power supplies to protect critical equipment, such as devices used for medical imaging in MRI rooms. It can also be used for computers and industrial equipment. It’s fully tested to IEC (International Electrotechnical Commission) 1000-4-5 and IEC 100-4-6, ensuring excellent surge immunity.

Features and Benefits

• RFI filter
• Operating frequency of 50/60 Hz
• Maximum voltage rating of 240 V DC
• Maximum current rating of 5 A
• Current leakage of >
0.3 mA
• Three stages
• Screw termination style
• Wall mounting
• 123 mm (length) x 75 mm (depth) x 28 mm (height)
• Operating temperature range of -25°C to +85°C

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Datasheet
