12265875111, Eaton 2 x 18 W Light Fitting Hazardous Area Light, 1, 2, Twin Fluorescent, Temp T4, 120 → 240 V ac, ATEX

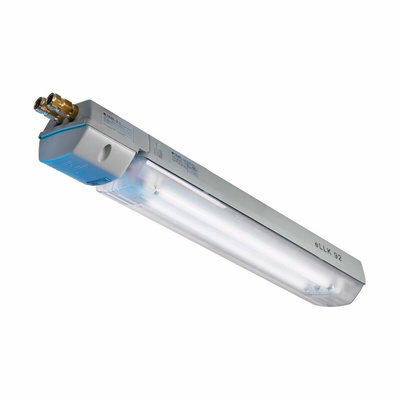

Eaton CEAG Hazardous Area Linear Fluorescent Light Fitting - Zone 1 & 2 Ex-e Lighting

The Eaton CEAG Crouse-Hinds eLLK 92 range of linear luminaires for fluorescent lamps combine the latest lighting technology with the requirements of a harsh and hazardous environment. These explosion-proof hazardous area lights are designed with safety in mind and can be easily connected to a CEAG emergency lighting supply system. This hazardous area lighting provides illumination and excellent light output in areas where other light sources would be unsuitable.

Features and Benefits

• Uses twin T8 linear fluorescent tubes
• Easy installation and maintenance
• Explosion protected and suitable for hazardous area lighting in offshore and industrial environments (zone 1 and zone 2)
• Hinged access to the terminal compartment with 6mm terminals at both ends allowing through wiring
• Integral switch isolates the lamps when cover is removed
• High-frequency electronic ballast
• Smooth outer surface for easier cleaning
• Lightweight polycarbonate and GRP housing
• IP66 ingress of protection meaning this light is dust tight and protected from water vapour jets

Certificate No.

PTB 96 ATEX 2144

Group and Category

II 2 G EX eds IIC T4 for Zones 1 & 2

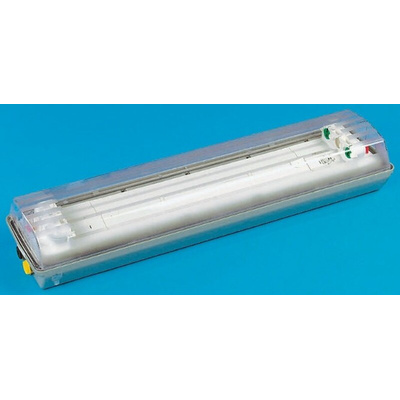

Eaton CEAG Twin Fluorescent Hazardous Area Light, 18W, 180mA - 12265875111

Illuminate hazardous areas in your workplace with this durable area light from Eaton CEAG. The unit features two energy-efficient 18W light-emitting diode (LED) lamps that are designed to deliver plenty of light with minimal power consumption.
The lamps are shielded by a housing made of polycarbonate and glass-reinforced polyester (GRP) material. This isn't just impact-resistant, it's also able to withstand explosions. You can use this unit in marine and industrial environments, where it can be connected to an emergency lighting supply source.

Features & Benefits

• Smooth outer surface for easy cleaning
• Integral switch isolates the lamp when its cover is removed for improved electrical safety
• A standard dual ballast is included for current regulation and energy efficiency
• IP66 (ingress protection) rating indicates resistance to dust and high-pressure water jets
• Current rating of 180mA for energy conservation

How do I mount this component?

This area light is designed for ceiling mounting. It has a protective bowl that can be screwed in on both sides so you can mount it on either axis. Single-ended through wiring allows for simple installation.

Note

Eaton formerly known as CEAG

Approvals

Group & Category: II 2 G EX eds IIC T4 for Zones 1 & 2
Certificate No. PTB 96 ATEX 2144

PTB 96 ATEX 2144
