846.300.00, Werma 846 Series Yellow Steady Effect Beacon Unit, 12 → 230 V ac/dc, AC, DC, IP54

Stacking Signal Tower - KombiSIGN 50, 50mm, IP54

The WERMA KombiSIGN 50 modular stacking signal tower is an ideal solution to the increasing requirement for safety, machine productivity and reduced downtime. Each KombiSIGN module is equipped with a bayonet fixing with integral contact system. The modular design of these stacking towers enables quick and easy installation. Simply align the corresponding white marks and gently twist to lock them in place.

Features and Benefits

• Suitable for machine and manual Andon indication
• Modular system allows a completely free combination of optical and audible signal elements
• Mechanical and electrical connection of the elements in the space of seconds using a bayonet connection system
• Completely safe element changes (contact-voltage proof) without the need for tools
• Protection rating IP54 for use in normal conditions
• Up to 4 elements can be mounted on a terminal base
• Flexible combination of optical and audible elements
• Optical isolation due to O-ring seal stopping illumination of adjacent element
• Operating voltage for the continuous incandescent element is dependant on bulb fitted
• Buzzer element, 80 dB, permanent or pulsating tone adjustable by link in unit
• Operating temperature range is -20 to +50 °C
• Polyamide body with polycarbonate lenses, 50 mm diameter

Note

Lamps are not supplied and must be purchased separately. Not compatible with KombiSIGN 70/71.

Standards

Conforms to LVD: 73/23/EEC and to EMC directive: 89/336/EEC.

Approvals

UL listed, CSA, VDE.

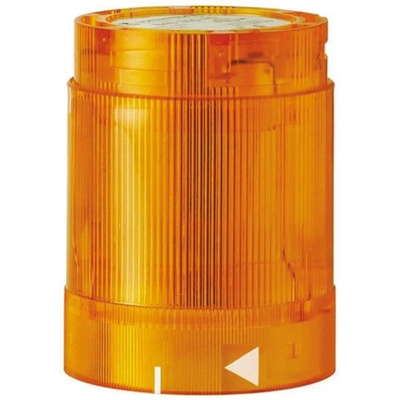

WERMA Beacon Unit, 67mm Height, B15d Socket Type - KombiSIGN 50 Series - 846.300.00

Keep your staff in the know about your industrial operations with this beacon unit from WERMA. A yellow lens means it's a safe bet for signalling hazards and changes in processes. The bayonet-style design offers easy installation, as it clicks into a compatible base unit with a simple twist. This product is built to withstand use in demanding workplaces, as its PC housing stands up to impact and abrasion.

Features & Benefits

• IP54 rating means it's protected against limited amounts of dust and water sprays from every direction
• Performs reliably in temperatures between -20°C and +50°C for use in harsh conditions
• Light weight of 40g to place minimal strain on your setup

Applications

• Automotive manufacturing
• Plant engineering
• Switch cabinets

What's the supply voltage range of this beacon?

It has a wide supply voltage range between 12 and 230V AC/DC, so it's a versatile option.
