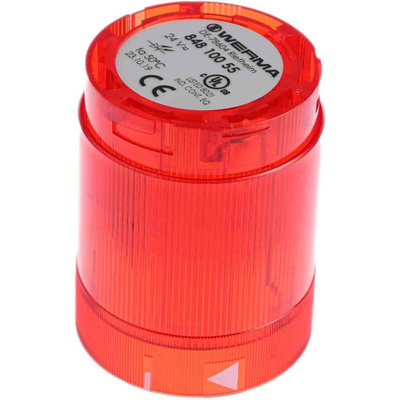

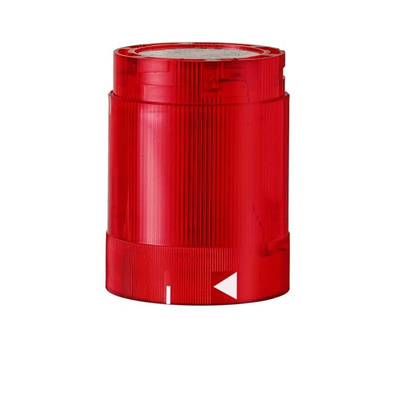

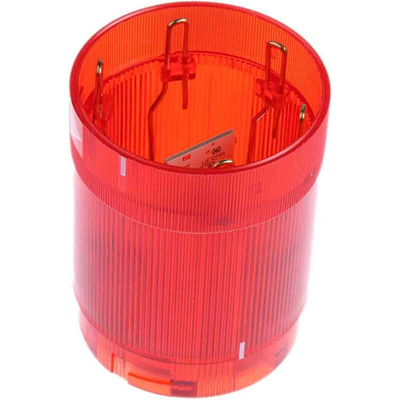

848.100.55, Werma 848 Series Red Steady Effect Beacon Unit, 24 V ac/dc, LED Bulb, AC, DC, IP54

WERMA Red LED Beacon, 24V AC/DC, Steady Light Effect - KombiSIGN 50 Series - 848.100.55

Draw attention to faults and emergencies with this red LED beacon from WERMA. It works with WERMA's KombiSIGN 50 terminal unit (849-5361), which allows you to stack elements together to create a customised signalling tower. It's simple to attach the beacon to the base unit and other elements thanks to its bayonet fixing. The integrated connection system means you don't need any tools to wire it up, saving you time and effort during installation.

Features & Benefits

• IP54 (ingress protection) rating means it's dust-resistant and protected against water sprays
• Wide operating temperature range of -20°C to +50°C for use in demanding environments
• Polyamide (PA) body and polycarbonate (PC) lens material for resistance to impact

Applications

• Construction industry
• Mechanical engineering
• Industrial automation

How many elements can I stack together?

You can stack up to four elements on one terminal base for versatile signalling.

Will light from one element filter into another in the stack?

No. Thanks to the O-ring seal, each light element has its own optical isolation. This means that light will not filter through and inadvertently illuminate an adjacent beacon.
