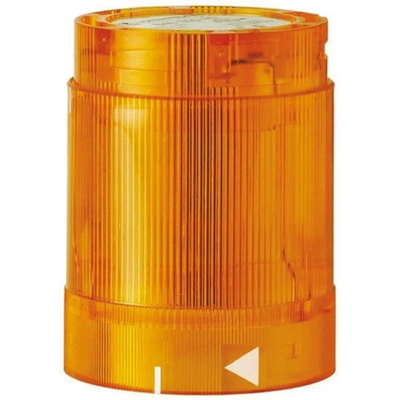

848.300.55, Werma 848 Series Yellow Steady Effect Beacon Unit, 24 V ac/dc, LED Bulb, AC, DC, IP54

Stacking Signal Tower - KombiSIGN 50, 50mm, IP54

The WERMA KombiSIGN 50 modular stacking signal tower is an ideal solution to the increasing requirement for safety, machine productivity and reduced downtime. Each KombiSIGN module is equipped with a bayonet fixing with integral contact system. The modular design of these stacking towers enables quick and easy installation. Simply align the corresponding white marks and gently twist to lock them in place.

Features and Benefits

• Suitable for machine and manual Andon indication
• Modular system allows a completely free combination of optical and audible signal elements
• Mechanical and electrical connection of the elements in the space of seconds using a bayonet connection system
• Completely safe element changes (contact-voltage proof) without the need for tools
• Protection rating IP54 for use in normal conditions
• Up to 4 elements can be mounted on a terminal base
• Flexible combination of optical and audible elements
• Optical isolation due to O-ring seal stopping illumination of adjacent element
• Operating voltage for the continuous incandescent element is dependant on bulb fitted
• Buzzer element, 80 dB, permanent or pulsating tone adjustable by link in unit
• Operating temperature range is -20 to +50 °C
• Polyamide body with polycarbonate lenses, 50 mm diameter

Note

Lamps are not supplied and must be purchased separately. Not compatible with KombiSIGN 70/71.

Standards

Conforms to LVD: 73/23/EEC and to EMC directive: 89/336/EEC.

Approvals

UL listed, CSA, VDE.

WERMA Beacon Unit, 50Hz Operating Voltage Frequency, 40mA Rated Operational Current - KombiSIGN 50 Series - 848.300.55

Want to ramp up your indicating system's capabilities? Pop this yellow beacon unit from WERMA onto your KombiSIGN 50 series LED tower. The bayonet mechanism lets you quickly attach this device to your system with a simple twist of the wrist. When an issue arises, the light either turns on or turns off, depending on your setting, so workers immediately know if there's a problem.

Features & Benefits

• IP54 rating indicates it's protected against limited amounts of dust and water sprays
• Performs reliably in harsh environments, thanks to a wide operating temperature range of -20°C to +50°C

Applications

• Manufacturing industry
• Processing plants
• Construction sites

How long does this beacon unit last?

This product has an optical service life of over 50,000 hours, so it's built to last and needs minimal maintenance.
