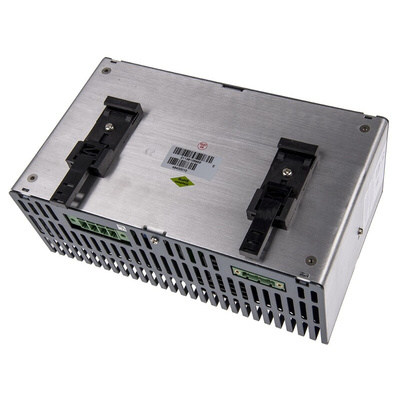

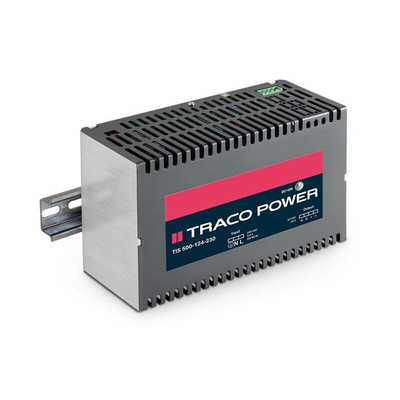

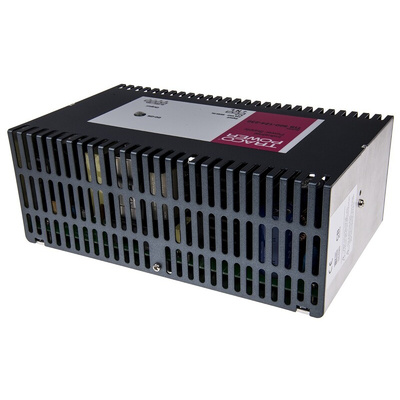

TIS 500-124-230, TRACOPOWER TIS Switch Mode DIN Rail Power Supply, 187 → 264V ac ac Input, 24V dc dc Output, 20A Output, 500W, Блок питания

Traco Power DIN Rail Power Supply, 47 to 63Hz Input Frequency, 0.3% Load Variation - TIS Series - TIS 500-124-230

Want to boot up your entire control cabinet in a flash? Install this DIN rail power supply from Traco Power. It takes between 187 and 264V AC and converts it into a reliable 24V DC output. Thanks to its 500W power rating, the unit is primed and ready to support large-scale systems. The low ripple and noise of up to 50mV pk-pk means minimal EMI and RFI to keep your setup running smoothly. You can rest easy knowing that, thanks to a high 90% efficiency, most of the electricity is being passed to your network and not lost as waste.

Features & Benefits

• Detachable screw terminals make wiring a cinch
• IP20 rating indicates the unit is touch-proof for safe handling
• Wide -25°C to +70°C operating temperature range suits installation in demanding conditions
• Long mean time between failures of 340,000 hours for uninterrupted service
• Mounts onto standard 35mm DIN rails in a snap

Applications

• Manufacturing facilities
• Transportation sector
• Mechanical engineering
• Process control

How much does this DIN rail power supply weigh?

It weighs 1.9kg and is 220mm long, so it won't drag down your rail or take up too much of its length.

Approvals

UL Recognised

Traco Switch Mode TIS Series Power Supplies, User Manual.

TIS Series Installation Instructions

Datasheet

Industrial Power Solutions Catalogue

Selection Guide
