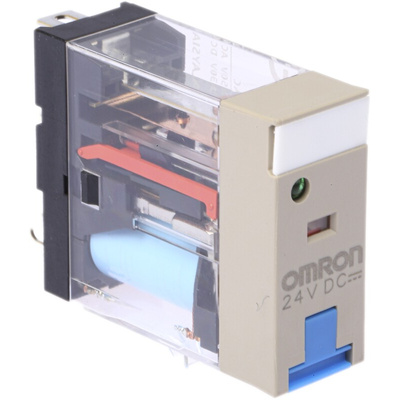

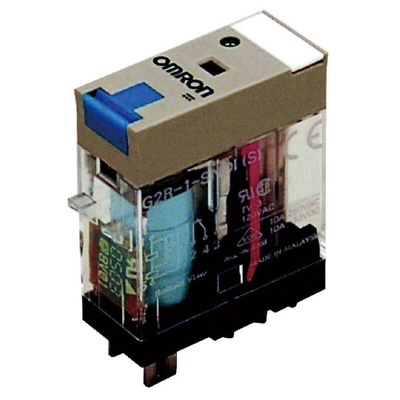

G2R-1-SNI DC24(S), Omron Plug In Non-Latching Relay, 24V dc Coil, 10A Switching Current, SPDT, Реле

G2RS Series with Test Button

Integral coil status LED, and mechanical operation indicator
Cadmium and lead free
Contact resistance: 100mΩ
Coil to contact isolation: 5000Vac
Operating temperature range: -40 to + 70°C
H35.5, W29, D13mm
DIN Rail and PCB sockets are available separately

Note

Can be used as a replacement for earlier version of G2R-SN series, please check height clearance.

Approvals

UL, CSA, VDE

OMRON Non-Latching Relay, With Test Button, 21.6mA Input Current Rating - G2R Series - G2R-1-SNI DC24(S)

Switch your hardware's power connection in a flash with this non-latching relay from OMRON. By using highly conductive silver alloy contacts, it efficiently carries energy to support smooth machine running. There's no need to worry about complex wiring as the device slots into a socket (111-3066) to cut down on prep work. As it switches up to 1800 times an hour, this is a smart choice for demanding control tasks. Thanks to a lockable test button, checking the relay's in working order is no trouble. Devices like this one commonly help manage uninterruptible power supplies and telecommunications equipment.

Features & Benefits

• Mechanical status LED indicator clearly signals the switch position for simple inspection
• Electrical lifespan of over 1 million cycles to provide long-lasting circuit control
• Response time of 15ms makes for quick switching
• Works with current up to 10A for versatility

Applications

• Engineering workshops
• Material handling
• Metalworking

What's the difference between latching and non-latching relays?

A latching relay stays in position if its power supply stops, helping it easily run continuous processes. A non-latching relay such as this one opens when it loses power, so it's a reliable pick for temporary circuit control like in lighting systems.

CSA LR31928

VDE 40015012
