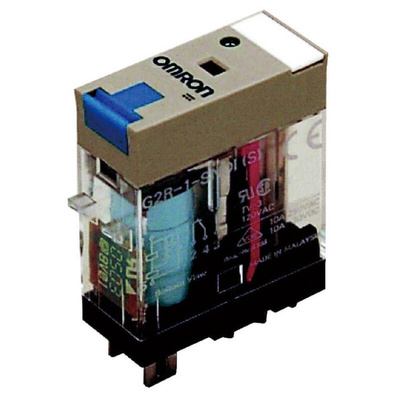

G2R-1-SNDI DC24(S), Omron Plug In Power Relay, 24V dc Coil, 10A Switching Current, SPDT, Реле

G2RS Series with Test Button & Back E.M.F Suppression Diode

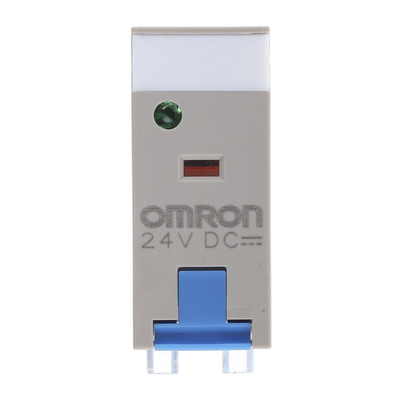

Integral coil status LED, and mechanical operation indicator
Cadmium and lead free
Contact resistance: 100mΩ
Coil to contact isolation: 5000Vac
Operating temperature range: -40 to + 70°C
H35.5, W29, D13mm
DIN Rail and PCB sockets are available separately

Note

Can be used as a replacement for earlier version of G2R-SN series, please check height clearance.

Approvals

UL, CSA, VDE

OMRON Power Relay, 1100Ω Coil Resistance, 2.5kVA AC Maximum Switching Power - G2R Series - G2R-1-SNDI DC24(S)

Need a device to manage electrical flow, operate motors or switch power to different parts of your industrial circuitry? Hand over control to this power relay from OMRON. It takes 24V DC to energise the inbuilt coil and spark this assembly into action, so it's useful for low-power setups like HVAC and lighting systems. You can simply switch voltage if you need to send up to 380V AC or 125V DC to specific sections of your system, which keeps energy use efficient. Thanks to its plug-in mounting style, installing this unit is a matter of simply clicking it into place.

Features & Benefits

• 10A switching current for use with demanding applications
• Mechanical lifespan of up to 20 million cycles ensures longevity
• Inbuilt LED status indicator for easy monitoring at a glance
• Lightweight at 20g keeps strain to a minimum

Applications

• Aerospace engineering
• Industrial process control
• Electronics manufacture

What size is this power relay?

Compact dimensions of 29 (L) x 13 (D) x 29mm (H) make this a space-efficient choice.

Can I use this component in harsh conditions?

Yes, it performs reliably in temperatures between -40°C and +70°C so it's suitable for use in challenging environments.

CSA LR31928

VDE 40015012
