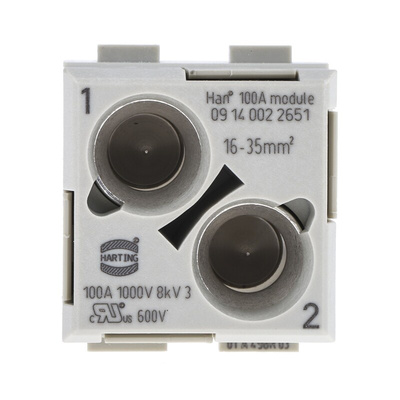

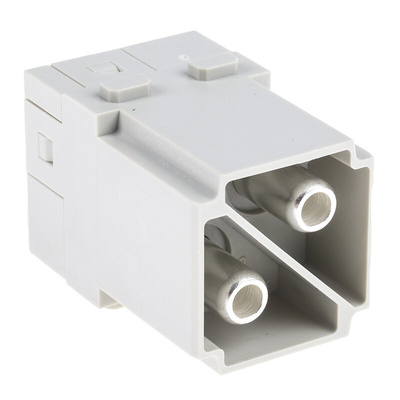

09140022651, HARTING Heavy Duty Power Connector Module, 100A, Male, Han-Modular Series, 2 Contacts

Han® K Axial Screw Module

2 contacts for 100A power circuit
2 ranges for cable up to 10mm² and 16-35mm²
Earthing provided by cable earthing shoe utilising 16mm² cable
Mating cycles ≥500

Warning

These connectors should not be mated or unmated under electrical load. Connectors of the same or different types arranged in a line should be polarised to prevent the possibility of wrong connection.

Harting Han® Modular

The Han-Modular series is a system consisting of insert modules and frames into which the insert modules fit. These in turn may be fitted to standard Han® housings. The system allows a variety of insert configurations within the one connector assembly. The Han-Modular system is designed to meet specific requirements of individual customers and offers flexibility when considering connections for signal, power & pneumatic lines when a solution is required with one connector Apart from the quality of the crimp connector, the right choice of the assembly tool is the basic element of a reliable connection. HARTING offers appropriate crimping tools for different levels of automation for all connectors.

V10827 HAN K Axial Screw Module
