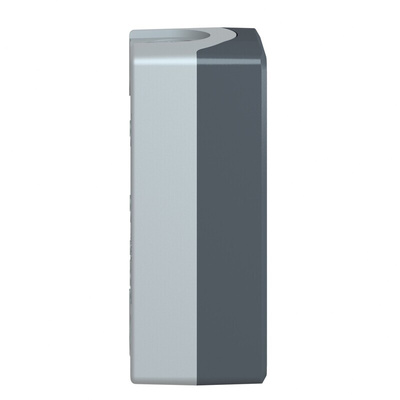

XALD03, Schneider Electric Grey Plastic Harmony XALD Control Station Enclosure - 3 Hole 22mm Diameter, Корпус

Schneider Electric | Harmony XALK and XALD Series | Push Button Enclosures

Harmony is a machine and panel solution series from Schneider Electric, the series includes push buttons, pilot lights, switches and other panel solutions offering high-performance without compromise. Offering modern and stylish design, efficiency, robustness in harsh environments, the Harmony series is one of the most comprehensive ranges available.

The Harmony XALK and XALD series is a variety of push button enclosures or control stations, which are compatible with other items in the Harmony range such as push buttons, mushroom head operators, legend plates and LEDs. Perfectly suited for many typical functions such as start, stop, start-stop and emergency stop, they have been specifically designed for simple installation whilst having a robust construction. Stations are complete and ready for assembly in order to meet your requirements, available are 1, 2, 3, 4 or 5 cut outs which are compatible with the Harmony XB5 units and push buttons. Protected to IP65 and NEMA 4 these enclosures are dusts and damp proof, whilst also conforming to IEC, UL and CSA standards.

XALD complete control stations are fitted with 1, 2 or 3 Ø 22 mm control and signalling units from the Harmony XB5 range

XALK complete control stations for emergency stop function (mushroom head push buttons)

Features and Benefits:

• Flush mounting
• Dust and damp proof
• Lightweight
• XALD for Ø 22 mm control and signalling units

Protection ratings & Safety features:

• Overvoltage rating Class II conforming to IEC 60536
• IP69, IP67, IP66 conforming to IEC 60529, IP69K and IK03 conforming to EN 50102
• NEMA 13 and NEMA 4X
• EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C 4520, UL 508 and CSA C22.2 No 14

Applications - Industry, service sector and infrastructure such as:
• Chemical industry
• Marine
• Energy distribution
• Panel builders
• Car washes
• Food and Beverage

Standards

CE Marked, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 4520.

Approvals

UL, CSA.

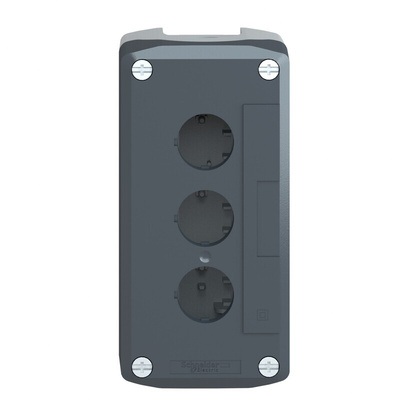

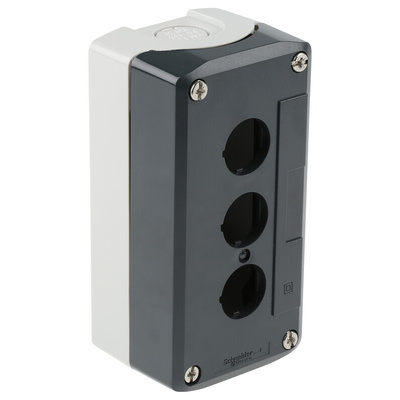

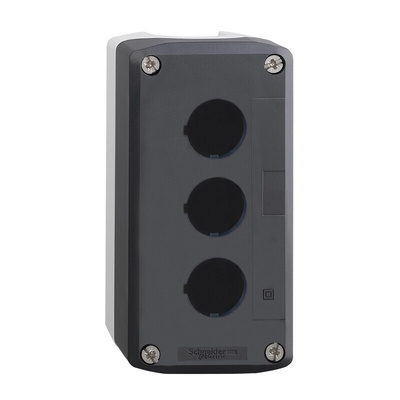

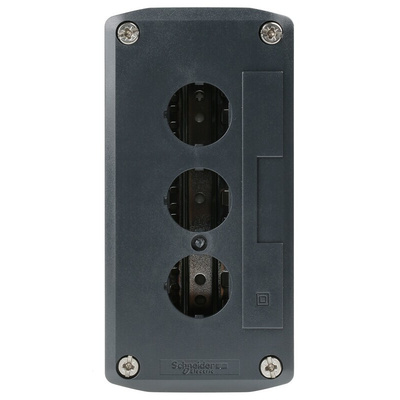

Schneider Electric Control Station Enclosure, For Use With Harmony XB5 Series, 3 Cutouts - Harmony XALD Series - XALD03

Need to protect your machine controls in heavy-duty industrial environments? This control station enclosure from Schneider Electric keeps them safe as houses. Thanks to its three cutouts, you can use it to house up to three push buttons for functions such as starting and stopping your equipment. The PC construction stands up to impact and wear to minimise the risk of damage to your components. An IP69K rating means the unit's dust-tight and protected against high-pressure, high-temperature water jets, so you can count on it in workplaces that need to be washed down.

Features & Benefits

• Cutout diameter of 22mm for compatibility with standard push buttons
• Performs reliably in temperatures between -40°C and +70°C
• Light weight of 238g to put little strain on your equipment
• Compatible with push buttons in the Harmony XB5 series for ease of assembly

Applications

• Manufacturing machinery
• Textile industry
• Packaging lines

Is it easy to wire my switches through this control station enclosure?

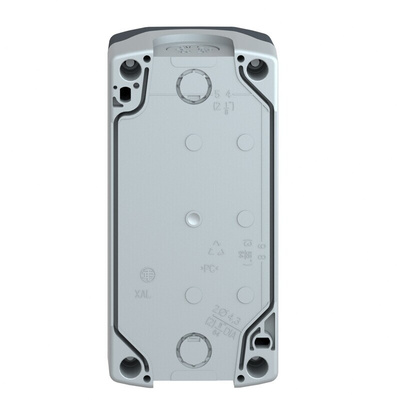

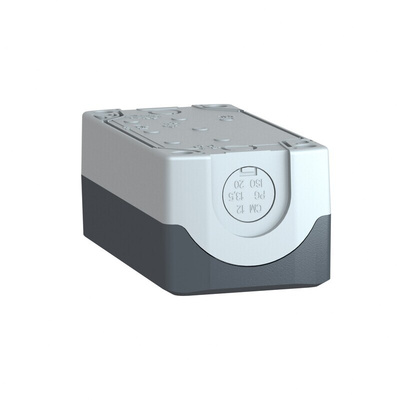

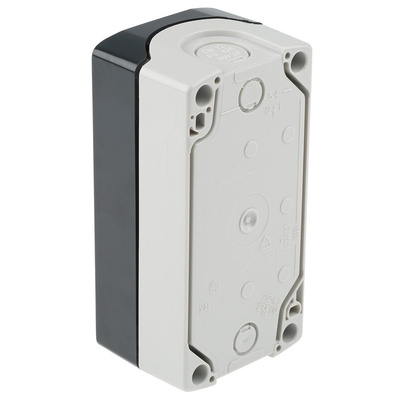

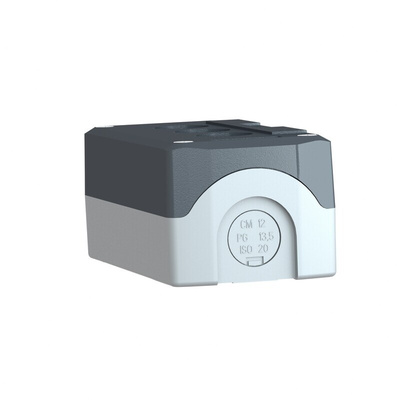

Yes, the unit features two knockouts for cables and two for cable glands, making it a cinch to connect wires.
