XALD102, Schneider Electric Spring Return Enclosed Push Button - SPST, Polycarbonate, 1 Cutouts, Green, I, IP66, IP67,

Schneider Electric Enclosed Push Button - Complete Control Station

Forming part of Schneider Electrics Harmony XALD Series, this complete control station is the ideal solution for installations within the chemical, marine, energy and automotive industry. Although they are found within a multitude of applications, a simple example is within a car wash. The majority of them will be found within an industrial environment because of how the control station provides a high level of protection for the push button inside.

Features & Benefits

• Compatible with other items in the Harmony range such as pushbuttons, mushroom head operators, legend plates and LEDs
• 1 flush push button
• Comprised of a polycarbonate material

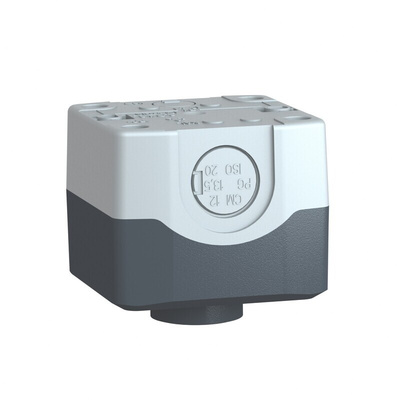

• Cable entry - 1 knock-out for cable entry, clamping capacity: <= 14 mm, 2 knock-outs for Pg 13 cable gland and ISO M20, clamping capacity: <= 12 mm
• Ambient air temperature for storage and operation -40...70 °C
• Mechanical durability - 10000000 cycles

What is the Harmony Series?

The Harmony Series is a range of push-button enclosures and pendant control stations that are used for direct control or auxiliary of processes and industrial machinery. This series is predominantly ideal for industrial, infrastructure and building applications and installations due to its wide choice of composition cut-outs. The Harmony Series range is all compatible to work with each other, interchangeably.

Schneider Electric Enclosed Push Button, AC/DC Operating Voltage, 10A Short-Circuit Protection - Harmony XALD Series - XALD102

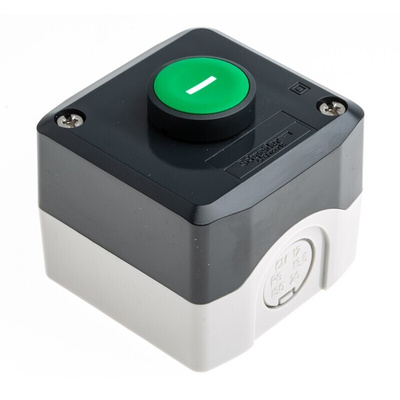

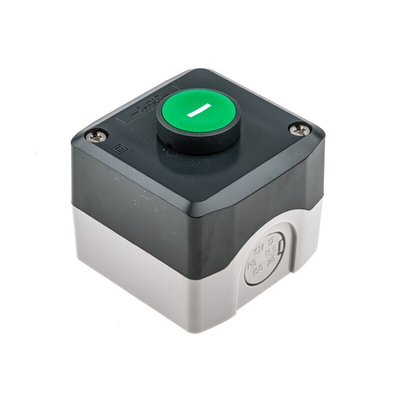

Looking for a hassle-free way to control power to your industrial equipment? Pick this enclosed push button from Schneider Electric. To turn a connected component on or off, you simply press on the green actuator, which activates the contacts to instantly make or break the circuit. The spring return actuation type returns to the start position as soon as you stop pressing, so you have momentary control. Thanks to its IP66 rating, you can be sure this unit's dust-tight and resists high-pressure water jets from any direction. A low weight of 135g means your system stays strain-free.

Features & Benefits

• Suitable for harsh environments thanks to a broad operating temperature range between -40°C and +70°C
• Mechanical durability rating of 10 million cycles, so it's highly reliable
• Polycarbonate body resists impact and scratches
• Tightening torque of 0.8 to 1.2Nm means it's simple to install by hand

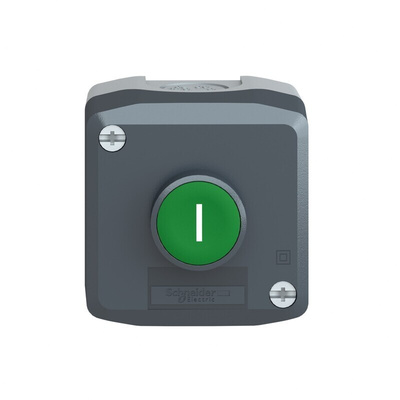

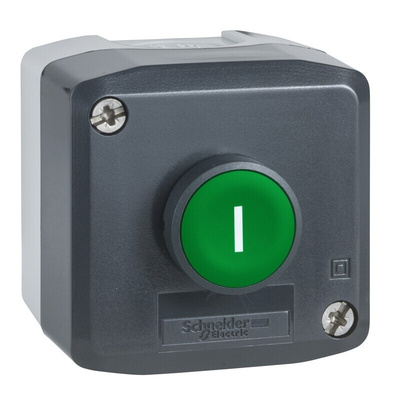

• Bright green colour with | symbol for easy identification as a start button

Applications

• Production lines
• Textile manufacturing
• Packaging industry
• Smoke extraction vents

Can this product withstand impulse voltages?

Yes, it withstands impulse voltages up to 6kV for electrical safety.
