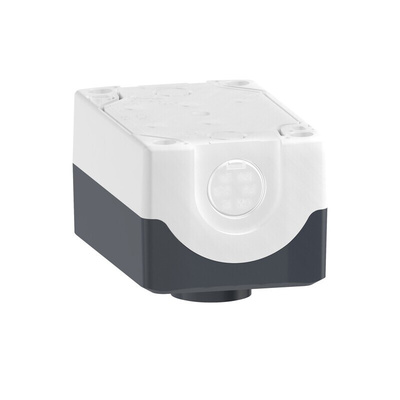

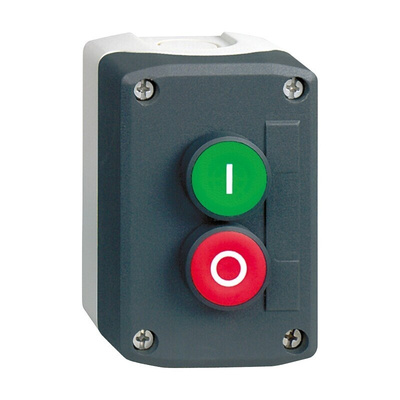

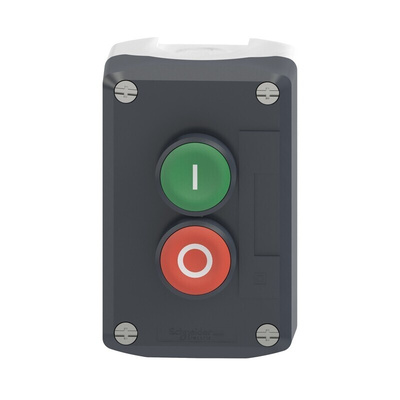

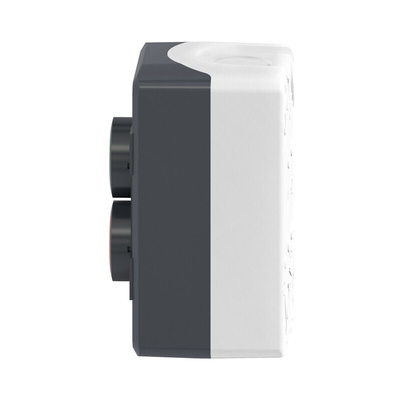

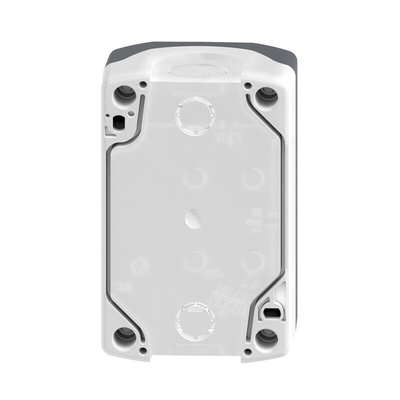

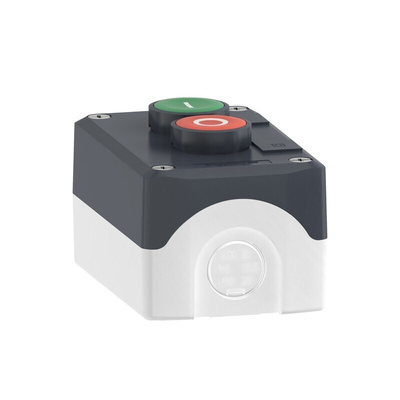

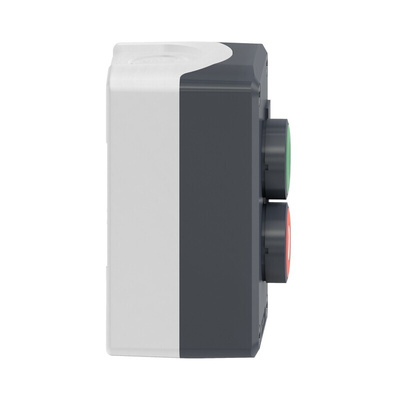

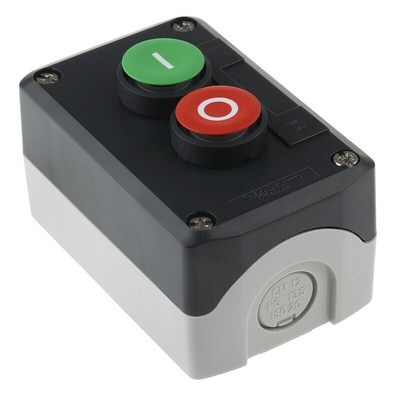

XALD213, Schneider Electric Spring Return Enclosed Push Button - SPST, SPST, Polycarbonate, 2 Cutouts, Red/Green, I/O, IP66,

Start/Stop, I/O Double/Triple Switches

Green and red 22mm diameter, spring return double insulated bezel push buttons

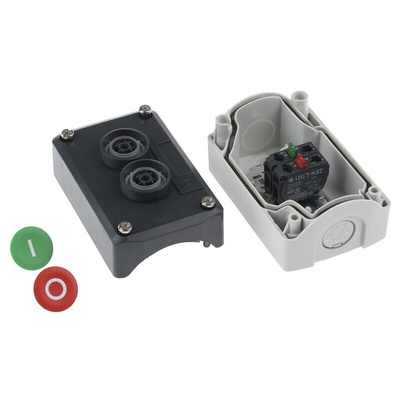

Stop button fitted with 1 N/C contact block, start button fitted with 1 N/O contact
I/O with red LED pilot light available
’STOP’ ’START’; version has marking on legend holder and legend below head
Double insulated
IP65 rated
Polycarbonate construction
Dimensions 106x68x62mm (incl button) (Double)

Schneider Electric Enclosed Push Button, Screw Clamp Terminal Type, 2 x Flush Button Actuators - Harmony XALD Series - XALD213

Need a reliable way to quickly stop and start your industrial equipment? Get your hands on this enclosed push button from Schneider Electric. Pressing on the green actuator causes the contacts to close and set connected machinery in motion. Simply push the red button to turn it off again. Universally recognised 'on' and 'off' symbols are clearly printed in white to make sure no one gets their wires crossed. Impulse voltages are no trouble for this unit, which withstands surges up to 6kV. Its low weight of 233g puts minimal strain on the mounting surface.

Features & Benefits

• Withstands harsh environments thanks to a wide operating temperature range between -40°C and +70°C
• 0.8 to 1.2Nm tightening torque means it's a breeze to install by hand
• Impact-resistant polycarbonate body holds up in tough conditions
• IP66 rating means it's dust-tight and withstands high-pressure water jets from any direction, so safe to wash down

Applications

• Lifting systems
• Rolling shutters
• Packaging equipment

How long will this control station last?

It has a durability rating of 10 million cycles, so you can trust it to handle constant use.
