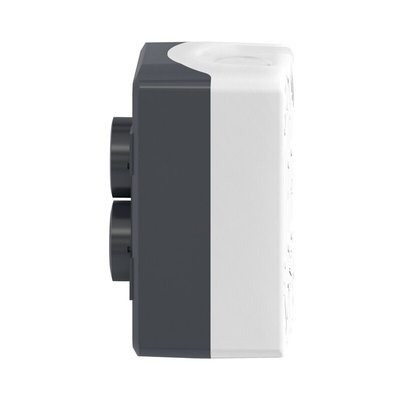

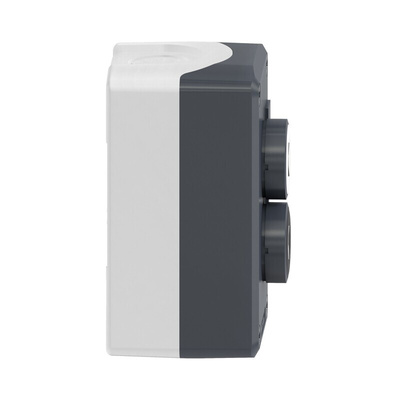

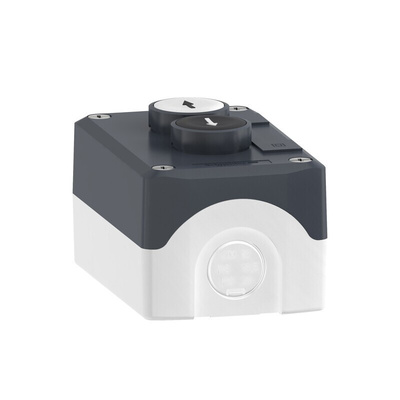

XALD222, Schneider Electric Spring Return Enclosed Push Button, Polycarbonate, 1 Cutouts, Black/White, Down Arrow, Up Arrow,

Schneider Electric Enclosed Push Button - Complete Control Station

Forming part of Schneider Electrics Harmony XALD Series, this complete control station is the ideal solution for installations within the chemical, marine, energy and automotive industry. Although they are found within a multitude of applications, a simple example is within a car wash. The majority of them will be found within an industrial environment because of how the control station provides a high level of protection for the push button inside.

Features & Benefits

• Compatible with other items in the Harmony range such as pushbuttons, mushroom head operators, legend plates and LEDs
• Spring return 22mm flush pushbutton
• Provision for an additional contact on the control station
• Double insulated
• Polycarbonate construction
• For XB5 Ø 22 mm control and signalling units
• Cable entry - 2 knock-outs for cable entry, clamping capacity: <= 14 mm, 2 knock-outs for Pg 13 cable gland and ISO M20, clamping capacity: <= 12 mm

What is the Harmony Series?

The Harmony Series is a range of push-button enclosures and pendant control stations that are used for direct control or auxiliary of processes and industrial machinery. This series is predominantly for industrial, infrastructure and building applications and installations due to its wide choice of composition cut-outs. The Harmony Series range is compatible to work with each other, interchangeably.

Schneider Electric Enclosed Push Button, 62mm Depth, 600V Rated Insulation Voltage - Harmony XALD Series - XALD222

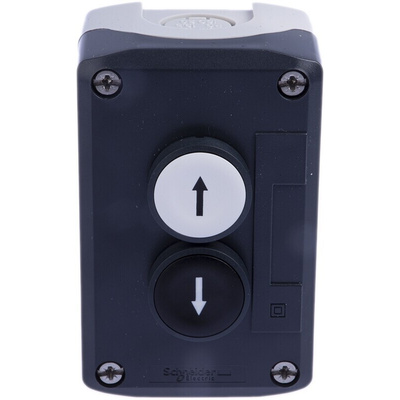

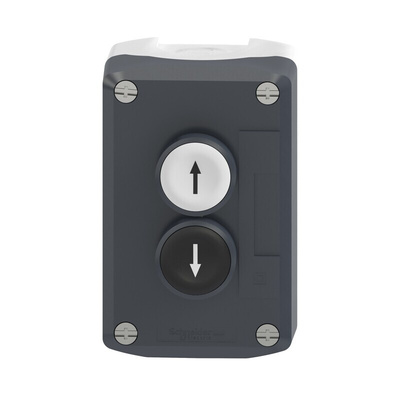

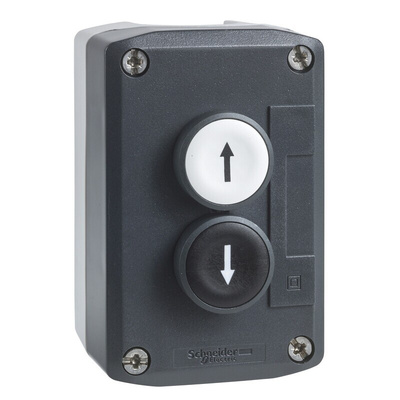

Ready to raise your equipment to new heights? Add this enclosed push button from Schneider Electric to a panel or wall. Up and down arrows are clearly marked in black and white to make lifting and lowering components a walk in the park. IP66, IP67 and IP69 ratings indicate you can depend on the unit in harsh settings, as it's fully dust-right and water-resistant. It also stands up to surges up to 6kV and is protected against short circuits by a 10A gG cartridge fuse, so boosts electrical safety. Install this device where you need two-way control, like garage doors, shutters or small lifting systems.

Features & Benefits

• Performs reliably in challenging temperatures between -40°C and +70°C
• Handles 5gn vibrations so you can install it next to rumbling machinery
• Polycarbonate body resists corrosion from acids, water and salt, for safe use in industrial applications

Applications

• Manufacturing systems
• Textiles industry
• Material handling equipment

How durable is this product?

It withstands up to one million electrical cycles and can be pushed up to 10 million times, so delivers a long service life.
