XALD324, Schneider Electric Spring Return Enclosed Push Button - SPST, Polycarbonate, 3 Cutouts, Black, Red, White, Yes, IP66,

Schneider Electric Enclosed Push Button - Complete Control Station

Forming part of Schneider Electrics Harmony XALD Series, this complete control station is the ideal solution for installations within the chemical, marine, energy and automotive industry. Although they are found within a multitude of applications, a simple example is within a car wash. The majority of them will be found within an industrial environment because of how the control station provides a high level of protection for the push button inside.

Features & Benefits

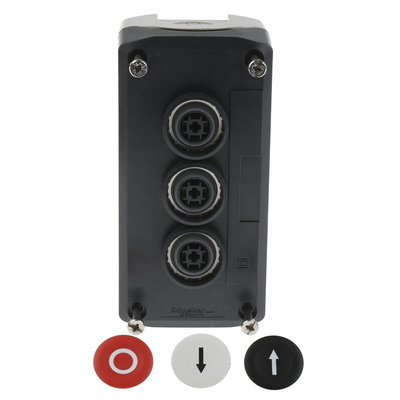

• Compatible with other items in the Harmony range such as pushbuttons, mushroom head operators, legend plates and LEDs
• Spring return 22mm flush pushbutton
• Provision for an additional contact on the control station
• Double insulated
• Polycarbonate construction
• For XB5 Ø 22 mm control and signalling units

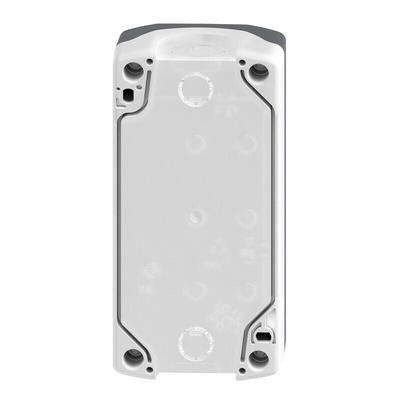

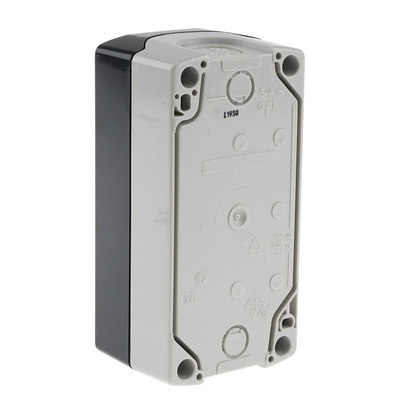

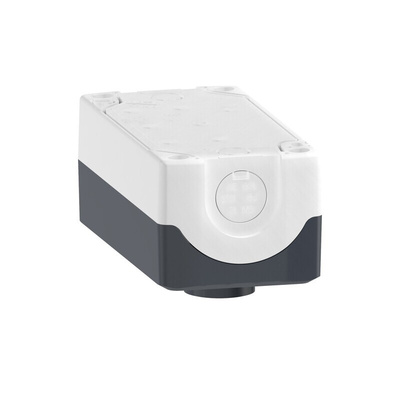

• Cable entry - 2 knock-outs for cable entry, clamping capacity: <= 14 mm, 2 knock-outs for Pg 13 cable gland and ISO M20, clamping capacity: <= 12 mm

What is the Harmony Series?

The Harmony Series is a range of push-button enclosures and pendant control stations that are used for direct control or auxiliary of processes and industrial machinery. This series is predominantly for industrial, infrastructure and building applications and installations due to its wide choice of composition cut-outs. The Harmony Series range is compatible to work with each other, interchangeably.

Schneider Electric Enclosed Push Button, Screw Clamp Terminal Type, 3 Flush Button Actuators - Harmony XALD Series - XALD324

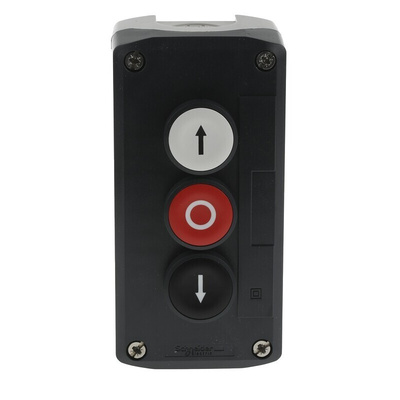

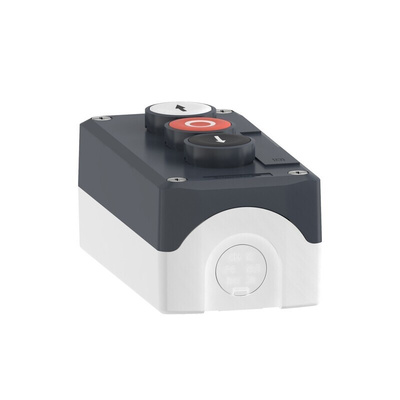

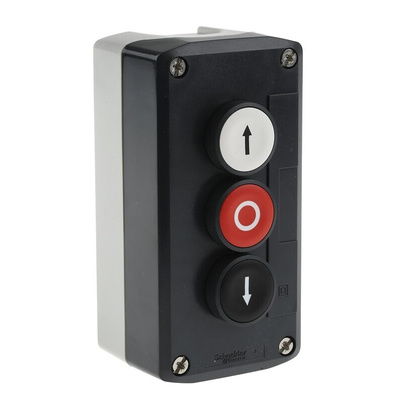

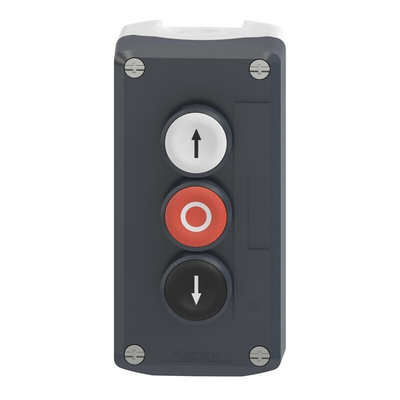

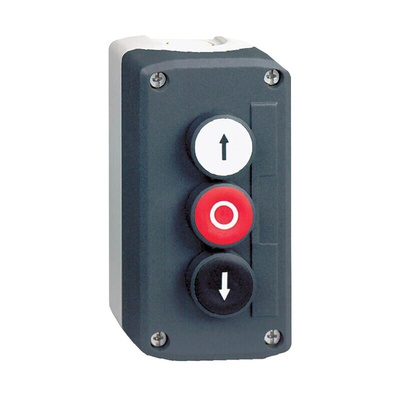

Need to get to grips with a hoist mechanism? Put yourself in control with this enclosed push button unit from Schneider Electric. It has three clearly labelled buttons that let you control up and down movements or switch off the equipment completely. As the device has a high durability rating of 10 million cycles, you can be sure it's a reliable option that withstands constant use. The buttons are flush mounted to avoid accidental activation. Strong polycarbonate construction makes this a durable option for heavy-duty applications.

Features & Benefits

• Tested up to 6kV so it's protected against impulse voltages
• Wide operating temperature range between -40ºC and +70°C
• Low weight of 298g means it puts minimal strain on your mounting surface
• Simple to install by hand as it needs just 0.8 to 1.2Nm tightening torque

Applications

• Glassworks
• Garage door control
• Ventilation systems
• Manufacturing equipment

Is this product water-resistant?

Yes, it's rated IP66, which assures you it's fully protected against high-pressure water jets from any direction. This rating also indicates the unit's dust-proof.
