XB4BD53, Schneider Electric Knob Selector Switch - (2NO) 22mm Cutout Diameter 3 Positions, Поворотный переключатель

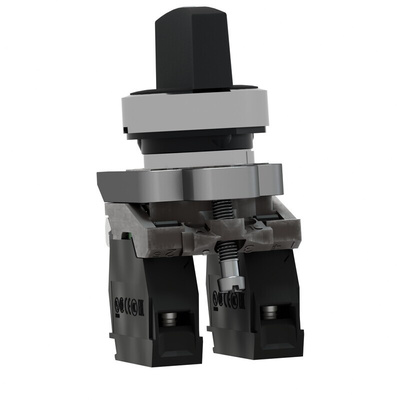

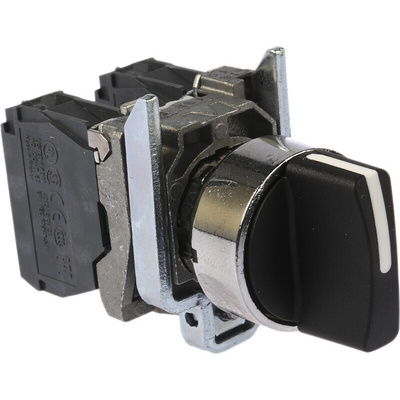

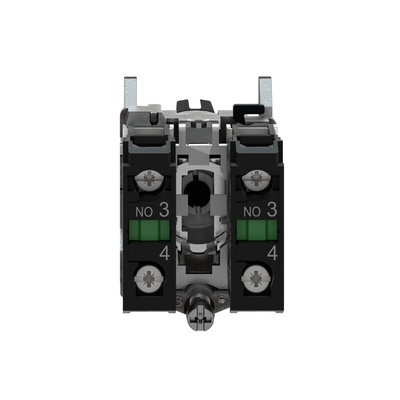

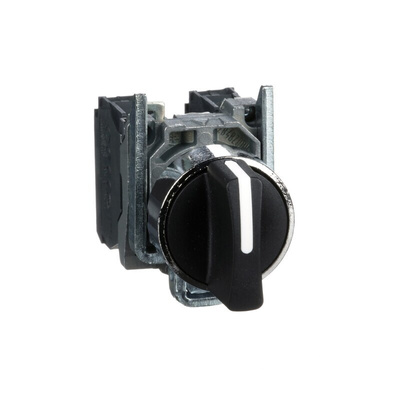

Schneider Electric 3-Position Selector Switch, 10A, 600V AC - Harmony XB4 Series - XB4BD53

Looking for multiple options for your control switch? You can turn this Schneider Electric selector switch, with its black knob and white position indicator, in three different ways. It returns to the centre after each turn so you can use it repeatedly, and the NO (normally open) contact remains open until you switch it off. Silver-alloy contact material delivers reliable electrical conductivity for quick switching responses. The unit's IP67 (ingress protection) rating indicates that dust can't enter the working, while ratings of IP69 and IP69k mean the switch is fully waterproof.

Features & Benefits

• Pre-attached contact block removes the need for complex wiring
• Operating temperature range of -40°C to +70°C for safe use in extreme conditions
• Maximum voltage rating of 600V AC for high-powered systems

Applications

• Manufacturing equipment
• Conveyor systems
• Agricultural machinery
• Warehousing and distribution centres

What is a spring-return operator?

Selector switches like this one use a spring-return contact. This means it has an internal spring mechanism that automatically moves the knob back to its original position when you stop turning it.

Approvals

UL; CSA

Datasheet

Catalogue - Harmony XB4 Metal

Product Environmental Profile
