XB4BG61, Schneider Electric

Schneider Electric | Harmony XB4 Series | Key Switches

Features and benefits:

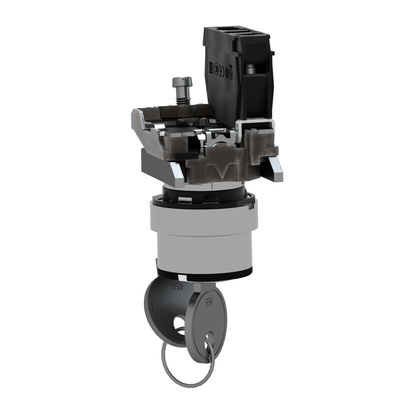

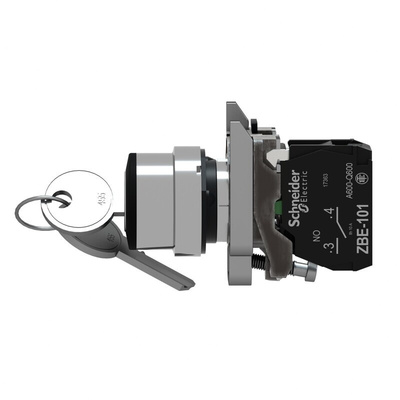

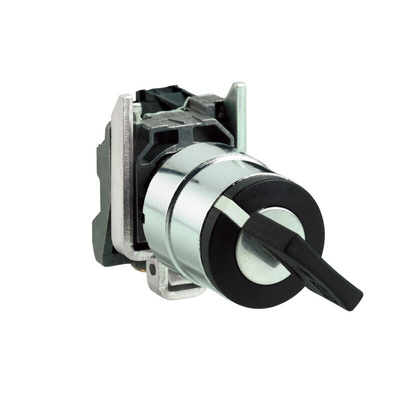

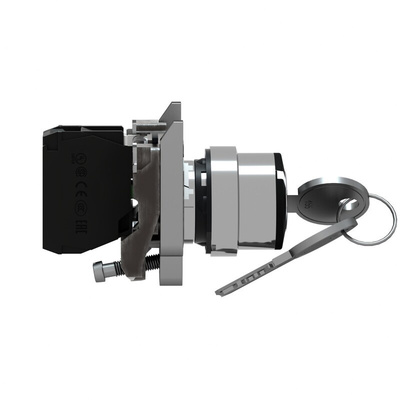

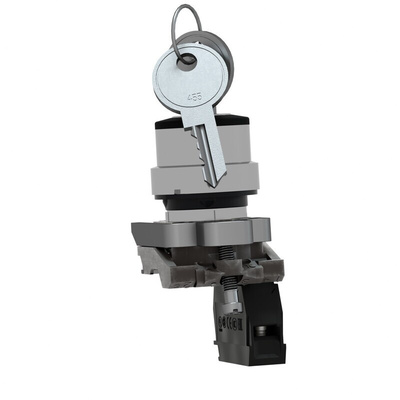

• Key switch operated, Ronis 455 key lock with a key withdrawal position of left-handed.

• Complete unit supplied with Contact Blocks.

• 1,000,000 cycles of electrical & mechanical durability.

• Phillips no 1, Pozidriv no 1 screwdriver profile head screws used.

• Tough Chromium-plated metal, giving the key switch a smooth, silver finish. Highly resistant to corrosion.

• Compact 22 mm mounting diameter and lightweight, perfect for when space is tight.

• Selector Switch XB4 features two positions, capable of turning at 90° angles.

• 18-month manufacturer warranty with Schneider Electric.

• Schneider Green Premium product offering sustainability to you

Protection ratings & Safety features:

• Overvoltage category class 1, conforming to IEC 60536

• Short circuit protection via a 10 A cartridge fuse conforming to EN/IEC 60947-5-1.

• NEMA 13 & NEMA 4X degree of protection.

• IP67 conforming to IEC 60529.

• IP69 & IP69k rated for better ingress protection.

• Mechanical protection to IK06 conforming to IEC 50102 (keyhole cover ZBGP).

• CSA, UL, JIS rated standards.

• Shock resistance from 30/50 gn conforming to IEC 60068-2-27.

Applications:

• Dangerous equipment such as motors that require human intervention to operate.

• Public buildings to control lighting in restrooms, corridors, etc.

Note

Manufacturers part numbers ending in EX are EX rated products

Group and Category

112 D-Ex td A21

Certificate No.

1 NERIS 04Atex900LU

Approvals

UL; CSA
