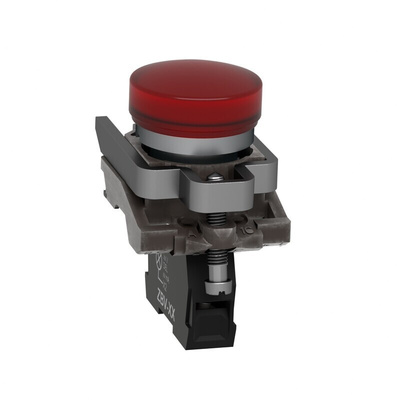

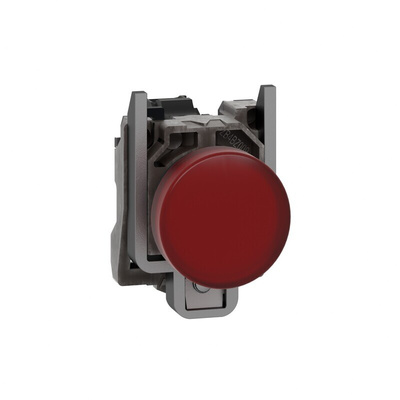

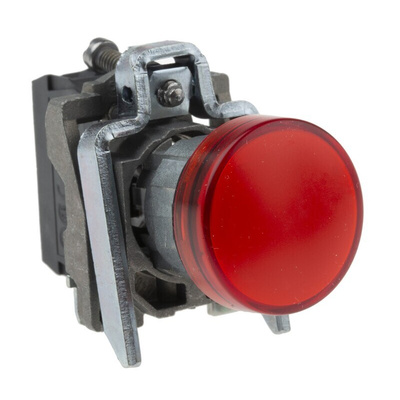

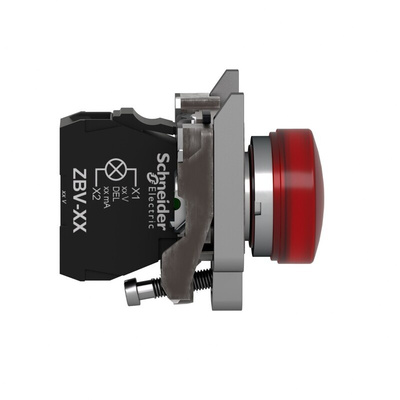

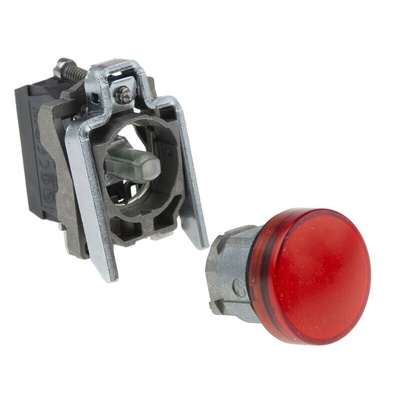

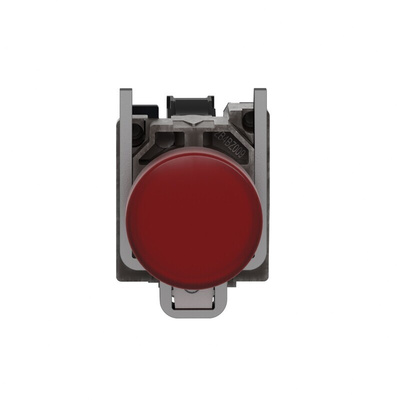

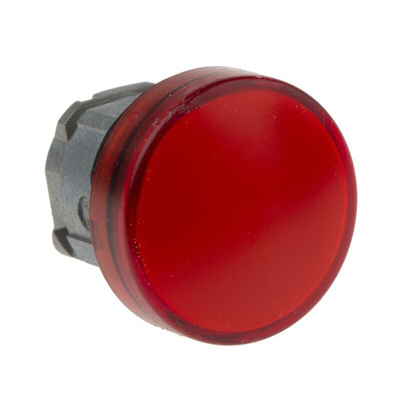

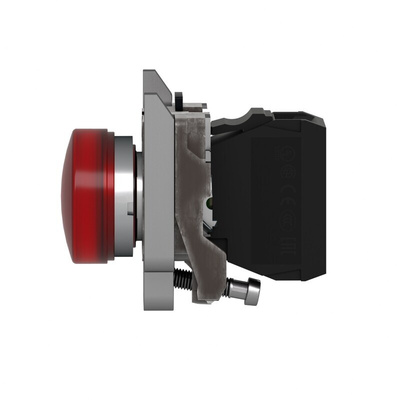

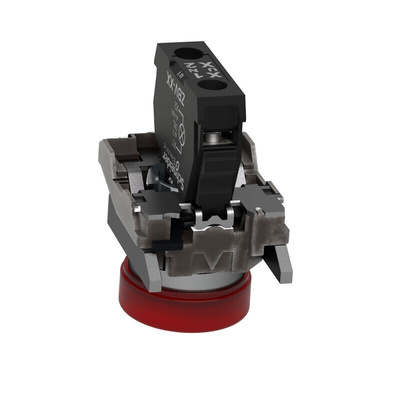

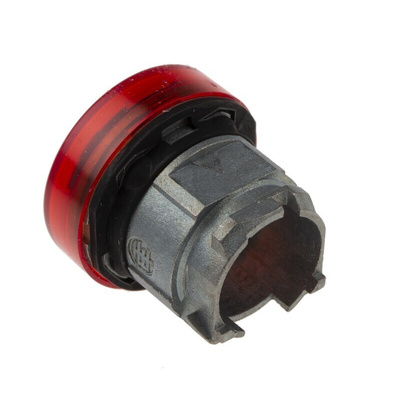

XB4BVB4, Schneider Electric, Harmony XB4, Panel Mount Red LED Pilot Light, 22mm Cutout, IP66, IP67, IP69(IP69K), 24V ac/dc

Schneider Electric Harmony XB4 LED Pilot Light Series

Providing functions to machines and panels, Schneider Electric combines performance with attractive design in the XB4 22 mm pilot light series. Reinforced with flushed mounting kits, this series is quick and simple to install. Modular design means these lights are adaptable and flexible even in the most demanding environment. Harmony XB4 light series also offers a wide variety of solutions, materials, LED colour, connection and fixings as well as accessories to customise panels. Connection types available include screw clamp, faston connector, spring terminal and printed circuit board.

Each LED pilot light has a 22 mm mounting diameter, in return they offer high vibration resistance, shake proof terminal screws and a shock protection level of up to IK06.

Features and Benefits:

• High vibration resistance with shake-proof terminal screws
• Shock protection
• -40°C –to 70°C operating temperature
• Wide choice of contact blocks
• High performance in demanding environments
• Flexibility and Adaptability
• Quick and simple installation

Protection ratings & Safety features:

• Conformity with IEC, UL, CSA, CCC EAC, and JIS standards
• Group and Category: 112 D-EX tD A21
• Certificate No. INERIS 04 ATEX 9004U
• CE marking and marine approvals
• Up to IP66, 67, 69, 69K, and type 4X protection ratings
• Up to IK06 shock protection

Applications - The XB4 series can be used for general purpose, Building and Infrastructure and Industry application, other applications include:
• Machine and control panel
• Food and beverage
• Automotive
• Restaurants
• Commercial buildings

Note

Manufacturers part number with EX denotation indicates EX rated product.
Direct supply type will require separate purchase of appropriate BA9s incandescent lamp, neon or LED.
Transformer types are supplied complete with BA9s incandescent.
LED types are complete with integral LED light block.

Schneider Electric Push Button Switch, Complete Pilot Light Unit, 22mm Mounting Diameter- Harmony XB4 Series - XB4BVB4

Looking for a hardwearing actuator to kick-start your industrial operations? Choose this push button switch from Schneider Electric. It has a 24V AC/DC voltage rating, so it's handy for low-power tasks. When the button's pushed in, an integral LED lights up to clearly signal your equipment's operating status. An IP69K rating means the unit is completely dust-tight and withstands hot, high-pressure spray, so it's ideal for hygiene-critical applications. You can be sure it goes the distance, thanks to a long service life of 100,000 hours. Screw terminals mean setup's swift and simple.

Features & Benefits

• 4kV-rated impulse withstand protects equipment from hazardous overvoltages
• Compact dimensions of 47 (H) x 30 (W) x 54mm (D) so it fits into tight spaces
• Performs without a glitch in temperatures between -40°C and +70°C
• Chromium-plated metal bezel resists impact and abrasion for a long lifespan

Applications

• Process control
• Factory automation
• Food and beverage industries

Is this product environmentally friendly?

Yes, it's made without toxic heavy metals, mercury and SVHC so it's an environmentally responsible choice.

UL E164353
