ZB4BA2, Schneider Electric Harmony XB4 Series Black Momentary Push Button Head, 22mm Cutout, IP66, IP67, IP69K

Schneider Electric Push Button Heads - Harmony XB4 Series

Introducing Schneider Electrics XB4 range of metal pushbuttons, created and designed to offer flexibility and robustness whilst combining the simplicity of installations and high performance. The Harmony XB4 range of push-buttons delivers an innovative and ergonomic design which promotes easy operation as well as giving a more aesthetically pleasing finish for control panels and machines.

Features & Benefits

• Meets the most robustness and performance requirements for the majority of industrial applications


• Delivers simplicity and efficiency while keeping expenses to a minimum


• Option to convert from standard to flush mounting


• Delivers extremely robust performance, even when is the harshest of environments


• Forms part of the Harmony XB4 series


• All heads within this range require a fixing collar, integral LED and contact assembly


• Please note: If you are using LED blocks, the colour of the head should be matched with the LED


• Unmarked, but with a marking option


• Spring return actuation

Applications

• Control panels in commercial buildings


• Factory automation lines


• For use in emergency situations where you need to cut off electrical supply via the press of a button

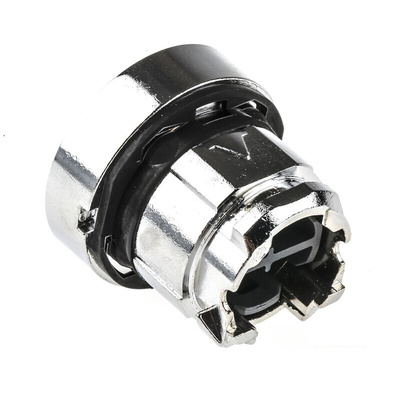

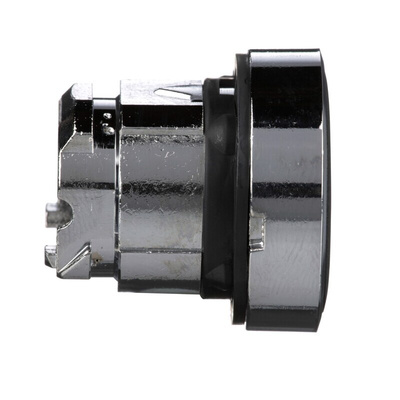

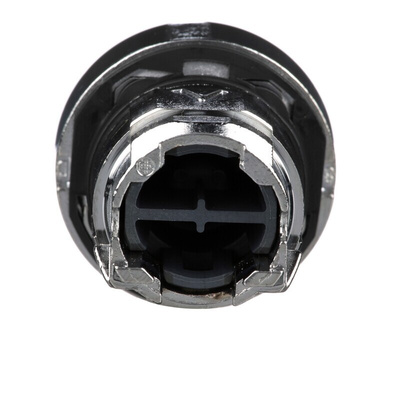

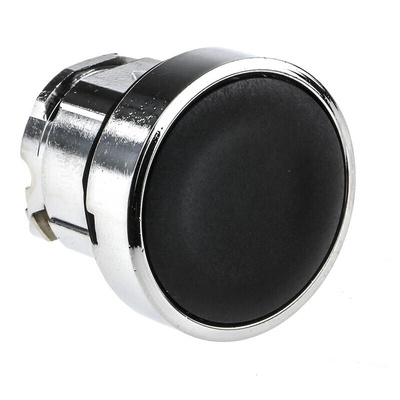

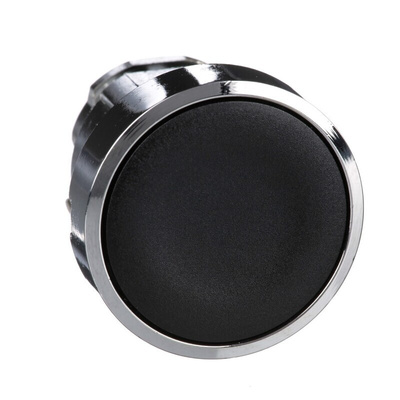

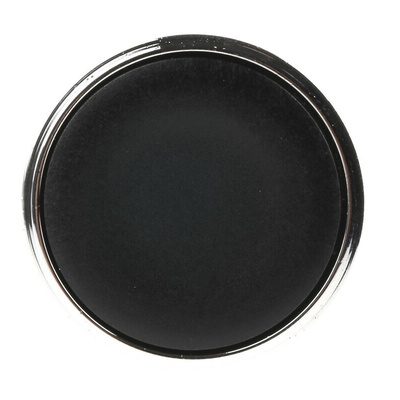

Schneider Electric Push Button Head, Round Head Type, 28.5mm Mounting Diameter - Harmony XB4 Series - ZB4BA2

Pick this black push button head from Schneider Electric for fast, fingertip control of your industrial equipment. Its momentary action style means it springs back to its default position once pressed, so it's easy to stay in control of stop-start processes. Thanks to a sturdy chromium-plated metal bezel, the unit stands up to rough treatment in industrial applications. A protective coating shields against high temperatures, so it's dependable in harsh conditions. As the head's free from SVHC, toxic heavy metals and mercury, so a sustainable choice that's safe to handle.

Features & Benefits

• Mechanical durability of 10 million operating cycles means it's long-lasting
• IP69K rating so it's dust-tight and withstands jets of hot water in hygiene-critical applications
• Screw clamp terminals make installation snappy and straightforward
• Flush profile prevents accidental activation
• 5gn vibration resistance for a strong performance in shaky settings

Applications

• Process and packaging lines
• Industrial automation
• Control panels

Can I use this push button head in cold-storage conditions?

Yes, it operates in a broad temperature range between -40°C to +70°C, so it's suitable for harsh conditions.
