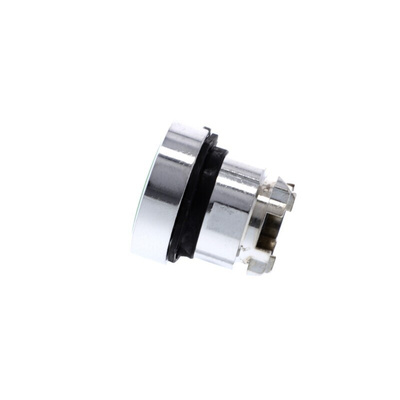

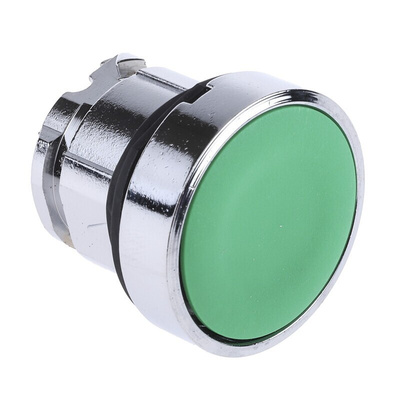

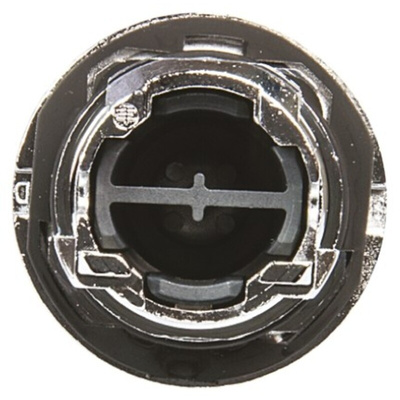

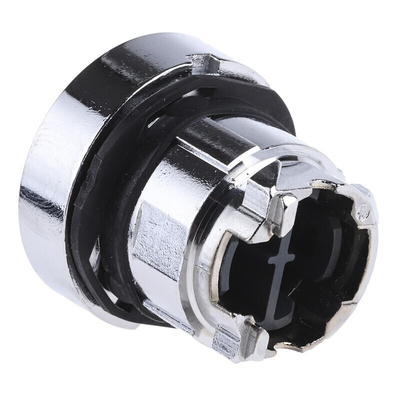

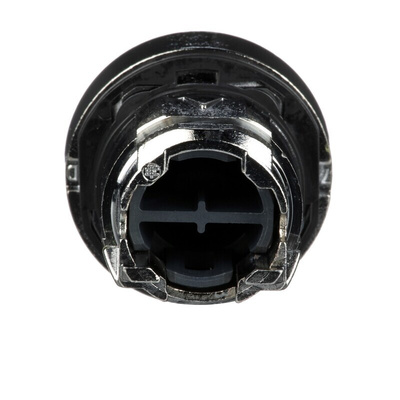

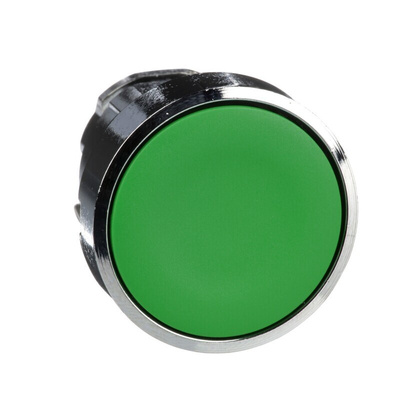

ZB4BA3, Schneider Electric Harmony XB4 Series Green Momentary Push Button Head, 22mm Cutout, IP66, IP67, IP69K

Schneider Electric Push Button Heads - Harmony XB4 Series

Introducing Schneider Electrics XB4 range of metal pushbuttons, created and designed to offer flexibility and robustness whilst combining the simplicity of installations and high performance. The Harmony XB4 range of push-buttons delivers an innovative and ergonomic design which promotes easy operation as well as giving a more aesthetically pleasing finish for control panels and machines.

Features & Benefits

• Meets the most robustness and performance requirements for the majority of industrial applications


• Delivers simplicity and efficiency while keeping expenses to a minimum


• Option to convert from standard to flush mounting


• Delivers extremely robust performance, even when is the harshest of environments


• Forms part of the Harmony XB4 series


• All heads within this range require a fixing collar, integral LED and contact assembly


• Please note: If you are using LED blocks, the colour of the head should be matched with the LED


• Unmarked, but with a marking option


• Spring return actuation

Applications

• Control panels in commercial buildings


• Factory automation lines


• For use in emergency situations where you need to cut off electrical supply via the press of a button

Schneider Electric Push Button Head, 30gn Shock Resistance for 18ms, 29mm Width - Harmony XB4 Series - ZB4BA3

Beef up your control panel with this green push button head from Schneider Electric. It's a momentary unit with a spring return, so it's ideal for user-monitored actions like positioning. Thanks to IP66, IP67 and IP69K ratings, you can be sure dust is shut out and the button shrugs off high-pressure jets of water during washdowns. It has a lifespan of 10 million cycles, so you can use it with confidence in the long term.

Features & Benefits

• Shake-proof connecting screws hold tight in vibrating conditions
• Safe to use in demanding settings thanks to its broad temperature range between -40°C and +70°C
• Fits flush in a panel to prevent accidental actuation
• Chromium-plated bezel is resistant to corrosion, so is safe to use in humid settings

Applications

• Packaging systems
• Manufacturing equipment
• Automotive industry
• Control panels

How do I mount this push button head?

Align the bottom ridges together, then push the button in until it snaps into place. You can secure the connection by tightening the screw.

Does this push button light up?

No, this push button is non-illuminated. Choose an illuminated alternative (such as 609-2774) if you need a button that lights up when actuated.
