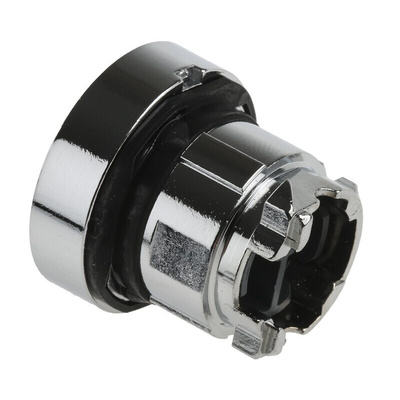

ZB4BA4, Schneider Electric Harmony XB4 Series Red Momentary Push Button Head, 22mm Cutout, IP66, IP67, IP69K

Schneider Electric Push Button Heads - Harmony XB4 Series

Introducing Schneider Electrics XB4 range of metal pushbuttons, created and designed to offer flexibility and robustness whilst combining the simplicity of installations and high performance. The Harmony XB4 range of push-buttons delivers an innovative and ergonomic design which promotes easy operation as well as giving a more aesthetically pleasing finish for control panels and machines.

Features & Benefits

• Meets the most robustness and performance requirements for the majority of industrial applications


• Delivers simplicity and efficiency while keeping expenses to a minimum


• Option to convert from standard to flush mounting


• Delivers extremely robust performance, even when is the harshest of environments


• Forms part of the Harmony XB4 series


• All heads within this range require a fixing collar, integral LED and contact assembly


• Please note: If you are using LED blocks, the colour of the head should be matched with the LED


• Unmarked, but with a marking option


• Spring return actuation

Applications

• Control panels in commercial buildings


• Factory automation lines


• For use in emergency situations where you need to cut off electrical supply via the press of a button

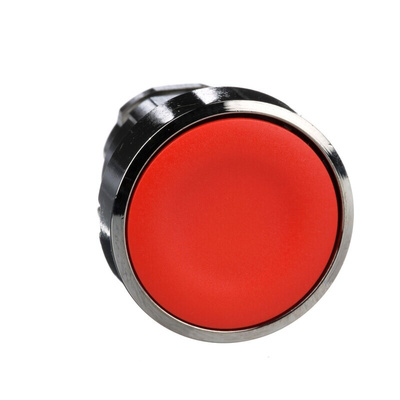

Schneider Electric Push Button Head, Red Colour, 28.5mm Diameter - Harmony XB4 Series - ZB4BA4

Does your machinery need a shove in the right direction? Add this red push button head from Schneider Electric to your panel. It sits flush after installation to stop accidental knocks from setting your equipment in motion. Thanks to the spring return mechanism, this component's ideal for momentary actions that need a user to be present. As the bright red colour makes it easily visible in busy settings, this is a smart on/off choice. Thanks to a lengthy lifespan of 10 million cycles, it won't let you down in the long term.

Features & Benefits

• Reliable in demanding settings thanks to an operating temperature range of -40°C to +70°C
• Rated IP66, IP67 and IP69K, meaning it's shielded from dust and withstands strong jets of water
• Fits easily into standard 22mm diameter panel cutouts so it's versatile
• Screw clamp terminals make quick work of installation

Applications

• Control panels
• Manufacturing facilities
• Packaging systems
• Agricultural equipment

Can I use this push button head in humid settings?

Yes, the bezel is made from chromium-plated metal, which is resistant to corrosion for reliable use in humid environments.
