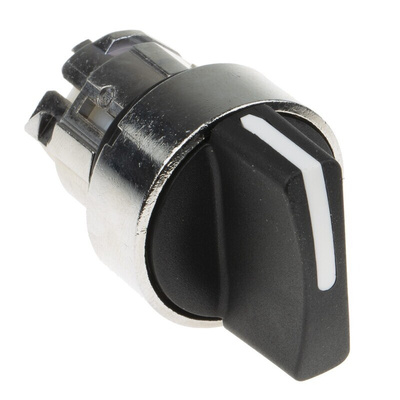

ZB4BD2, Schneider Electric Harmony XB4 Series 2 Position Selector Switch Head, 22mm Cutout, Black Handle

Schneider Electric Selector Switch Head, 22mm Cutout Diameter, 90° Throw Angle - Harmony XB4 Series - ZB4BD2

Use this selector switch head from Schneider Electric to quickly and efficiently operate your machines. Thanks to its latching function, it stays in place after you move it into position, which makes it suitable for managing your equipment's basic stop and start functions. The actuator's 90° throw angle means it needs a quarter-turn to change functions, helping to minimise the risk of accidental activation. An IP69K rating means the device is completely protected against dust and high-pressure, high-temperature water jets, making it suitable for use in areas that need frequent washdowns.

Features & Benefits

• Standard cutout diameter of 22mm to take up minimal space on your panel
• Chrome-plated metal bezel is resistant to corrosion and impact for durability
• Broad operating temperature range between -40°C and +70°C for use in demanding environments
• Light weight of 0.04kg for reduced strain on your equipment

Applications

• Domestic appliances
• Positioning tasks
• Loading bays
• Packing industry

How long will this selector switch head last?

This selector switch head has a mechanical lifespan of one million cycles for long-term performance.

UL E164353

Datasheet

Instruction Sheet

Catalogue

Catalogue - Harmony XB4 Metal

Instruction Sheet - ZB4BD2

Line drawing - ZB4BD2

Product Environmental Profile
