Schneider Electric Potentiometer Mounting Kit, ZB4BD912

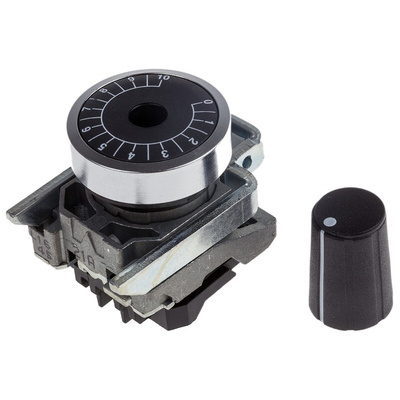

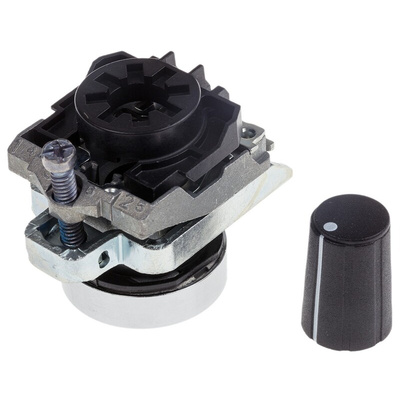

Schneider Electric Knurled Shaft Potentiometer Pushbutton Head, Black, 22mm Cutout - Harmony XB4 Series - ZB4BD912

This pushbutton head from Schneider Electric is a reliable operating mechanism for use in the control and emergency systems of your machines. The switch features incremental numbers from zero to 10, offering a wide range of control options. The bezel has a chrome-plated finish, which makes it more resistant to dirt. This finish also makes the bezel easier to clean and maintain. You can install it in the operating systems of your equipment via panel mounting.

Features & Benefits

• Wide operating temperature range of -40°C to +70°C for use in challenging environments
• Ingress protection (IP) rating of IP66 for protection against dust ingress and high-pressure water jets
• 0.08kg weight makes it quite easy to handle and install on your panel

Applications

• Machine operating panels
• Packaging plants
• Emergency systems

How does the knurled shaft potentiometer actuation of this pushbutton head operate?

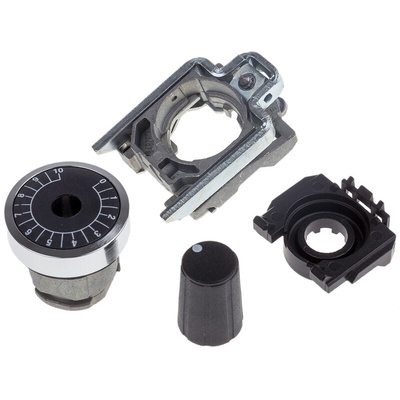

The knurled shaft and knob of this device work simultaneously as a single potentiometer system. The shaft features multiple teeth which correspond to the numbers on the knob. You can insert a 6mm diameter shaft into the knob and fix it into a control system.
