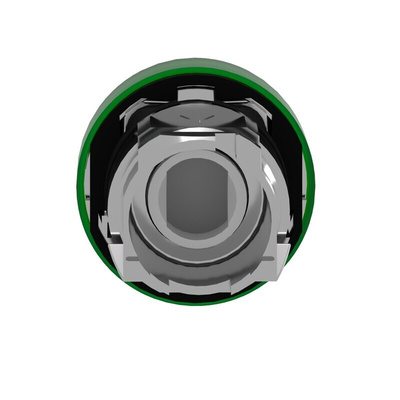

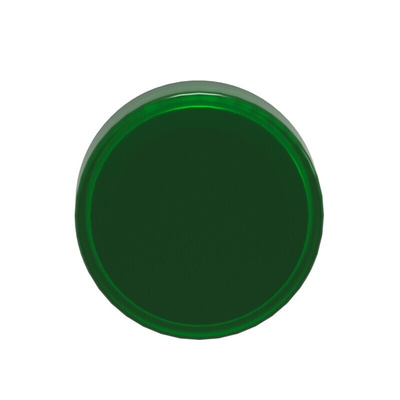

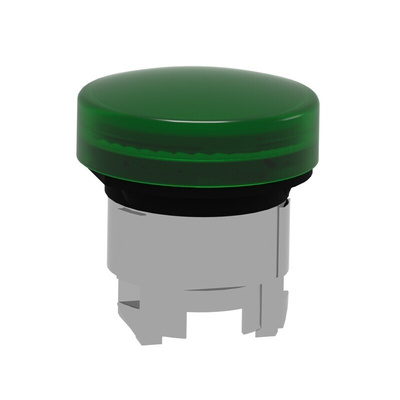

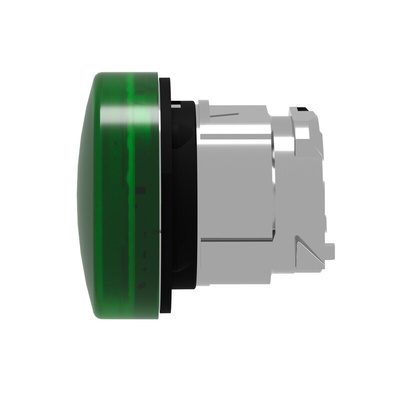

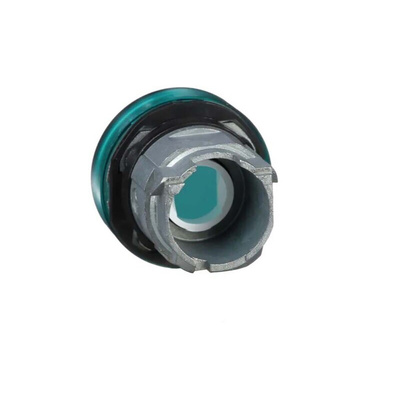

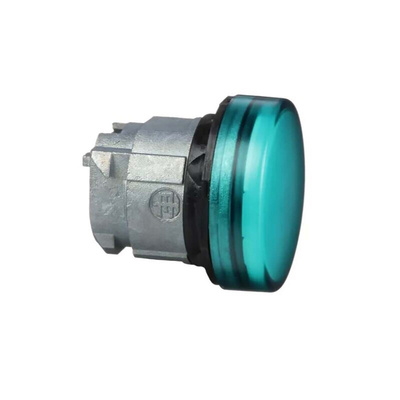

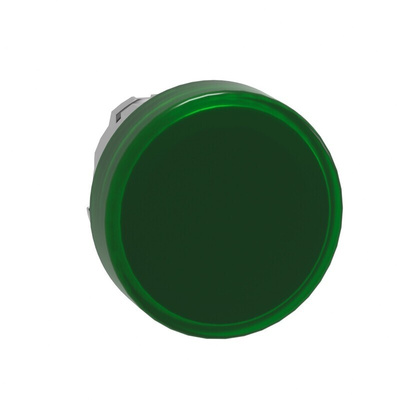

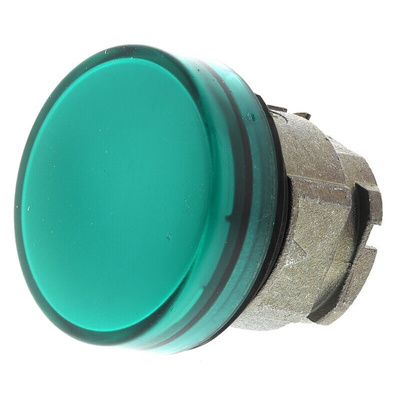

ZB4BV033, Schneider Electric Green Pilot Light Head, 22mm Cutout Harmony XB4 Series

Schneider Electric Harmony XB4 LED Pilot Light Series

Providing functions to machines and panels, Schneider Electric combines performance with an attractive design in the XB4 pilot light series. Reinforced with flushed mounting kits, this series is quick and simple to install. Modular design means these lights are adaptable and flexible, even in the most demanding environment. Harmony XB4 light series also offers a wide variety of solutions, materials, LED colour, connection and fixings as well as accessories to customise panels. Connection types available include screw clamp, fasten connector, spring terminal and printed circuit board.

Applications

The XB4 series can be used for general-purpose, Building and Infrastructure and Industry application, other applications include: Machine and control panel, chemical industry, food and beverage, automotive, paper mill, marine application and carwashes.

• This range of pilot light heads for use with a body consisting of either integral LED, neon, or LED
• The colour of the head should be matched with the same colour as the chosen LED block
• All heads require a body/ fixing collar, see stock no. 331-0142 and contact bodies, see stock no. 331-0158

Schneider Electric Push Button Head, Green Pilot Light, Chromium-Plated Metal Bezel - Harmony XB4 Series - ZB4BV033

When it's time to put your equipment to work, press this push button head from Schneider Electric. It fits onto a compatible pilot light unit so you can take control of operations in low-lit environments. As it sits flush on your control panel, accidental actuation is cut out of the equation. The chromium-plated metal bezel resists corrosion, so you can count on this unit in damp conditions. Thanks to its broad operating temperature range between -40°C and +70°C, this lens head shrugs off the challenges posed by demanding workplaces.

Features & Benefits

• Low net weight of 26g so it adds minimal strain to your mounting surface
• Vibration resistance of 5gn means it's dependable in shaky systems
• Free from toxic heavy metals to limit user exposure to unhealthy emissions
• IP66 rating means it's dust-tight and withstands high-pressure water jets from any direction

Applications

• Security systems
• Computing networks
• Medical technology
• Lighting switches

What cutout size is this unit compatible with?

This push button switch has a standard 22mm cutout diameter, so it's widely compatible without the need to drill a hole.
