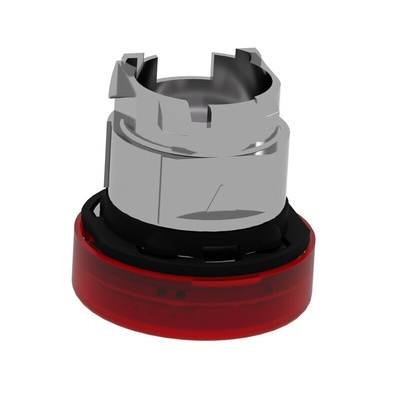

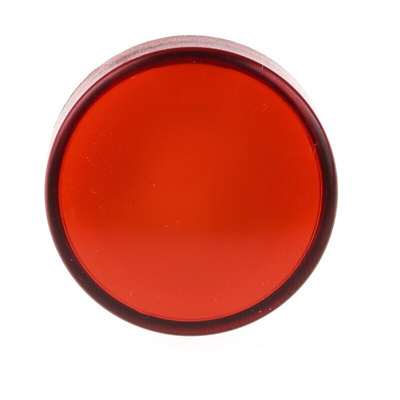

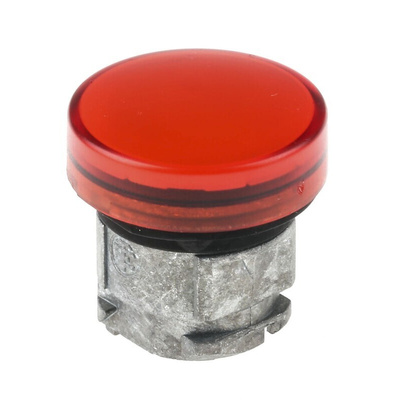

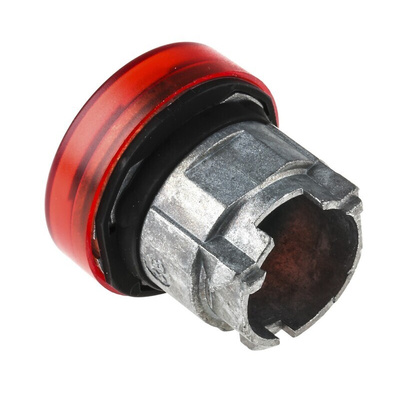

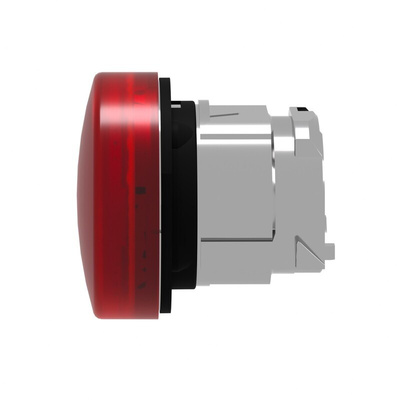

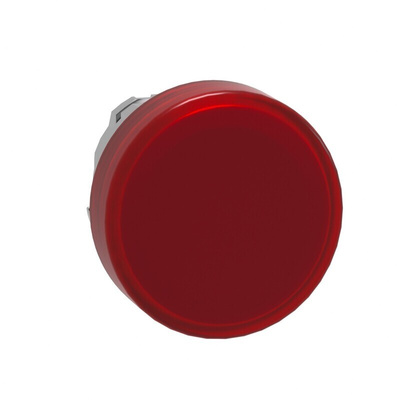

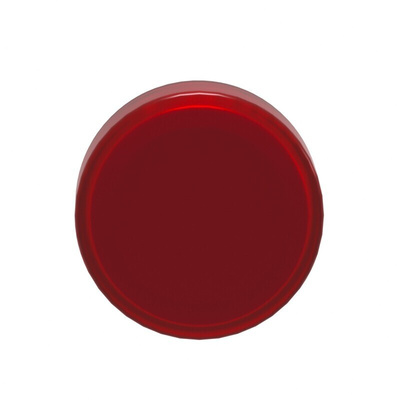

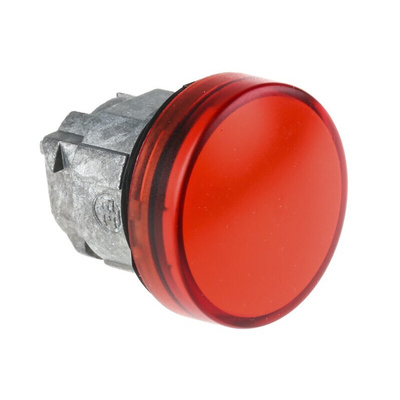

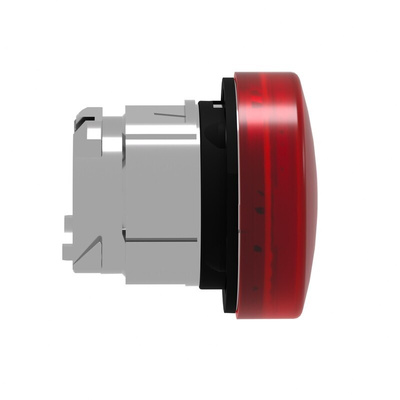

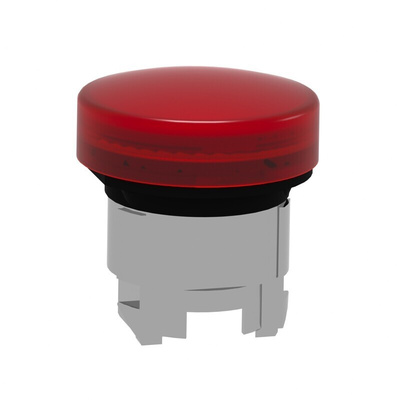

ZB4BV043, Schneider Electric Red Pilot Light Head, 22mm Cutout Harmony XB4 Series

Schneider Electric Harmony XB4 LED Pilot Light Series

Providing functions to machines and panels, Schneider Electric combines performance with an attractive design in the XB4 pilot light series. Reinforced with flushed mounting kits, this series is quick and simple to install. Modular design means these lights are adaptable and flexible, even in the most demanding environment. Harmony XB4 light series also offers a wide variety of solutions, materials, LED colour, connection and fixings as well as accessories to customise panels. Connection types available include screw clamp, fasten connector, spring terminal and printed circuit board.

Applications

The XB4 series can be used for general-purpose, Building and Infrastructure and Industry application, other applications include: Machine and control panel, chemical industry, food and beverage, automotive, paper mill, marine application and carwashes.

• This range of pilot light heads for use with a body consisting of either integral LED, neon, or LED
• The colour of the head should be matched with the same colour as the chosen LED block
• All heads require a body/ fixing collar, see stock no. 331-0142 and contact bodies, see stock no. 331-0158

Schneider Electric Push Button Head, Red Pilot Light, Chromium-Plated Metal Bezel - Harmony XB4 Series - ZB4BV043

Easily keep tabs on your industrial processes with this red push button switch from Schneider Electric. It fits onto a pilot light so you can see the status of a connected circuit in an instant. The unit mounts flush on a panel to prevent accidental activation in busy workspaces. It has a sturdy chromium-plated bezel, which stands up to knocks and shrugs off corrosion in heavy-duty environments. Harsh temperatures are no match for this switch, which operates safely in a range between -40°C and +70°C.

Features & Benefits

• Mounting diameter of 22mm means it's compatible with standard panels
• Low weight of 26g adds minimal strain to your setup
• IP66 rating means it's dust-tight and fully protected against high-pressure water jets from any direction, so is suitable for use without equipment that needs to be washed down
• 5gn vibration resistance so it's reliable in moving applications

Applications

• Transportation sector
• Computing equipment
• Telecommunications industry
• Security technology

What else do I need to install this unit?

To get your button up and running, you'll need a fixing collar (331-0142) and a contact body (331-0158).

UL E164353
