ZB4BV053, Schneider Electric Orange Pilot Light Head, 22mm Cutout Harmony XB4 Series

Schneider Electric Harmony XB4 LED Pilot Light Series

Providing functions to machines and panels, Schneider Electric combines performance with an attractive design in the XB4 pilot light series. Reinforced with flushed mounting kits, this series is quick and simple to install. Modular design means these lights are adaptable and flexible, even in the most demanding environment. Harmony XB4 light series also offers a wide variety of solutions, materials, LED colour, connection and fixings as well as accessories to customise panels. Connection types available include screw clamp, fasten connector, spring terminal and printed circuit board.

Applications

The XB4 series can be used for general-purpose, Building and Infrastructure and Industry application, other applications include: Machine and control panel, chemical industry, food and beverage, automotive, paper mill, marine application and carwashes.

• This range of pilot light heads for use with a body consisting of either integral LED, neon, or LED
• The colour of the head should be matched with the same colour as the chosen LED block
• All heads require a body/ fixing collar, see stock no. 331-0142 and contact bodies, see stock no. 331-0158

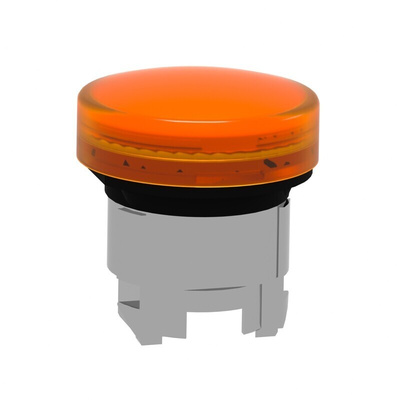

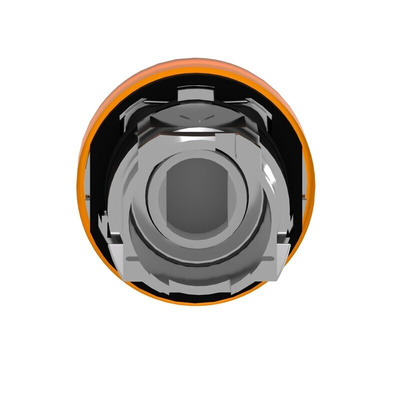

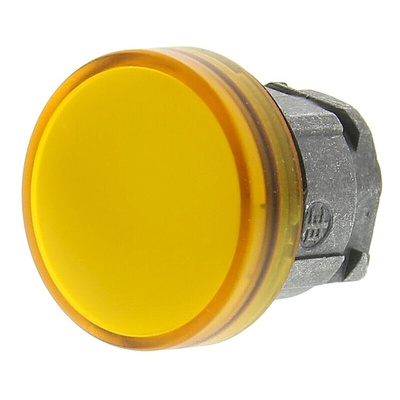

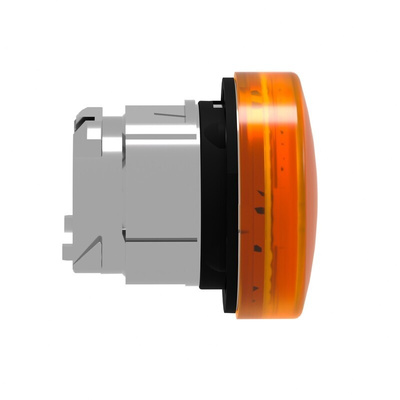

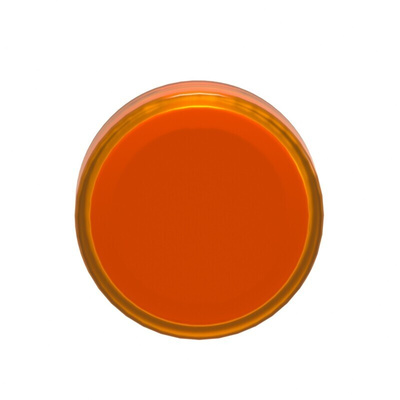

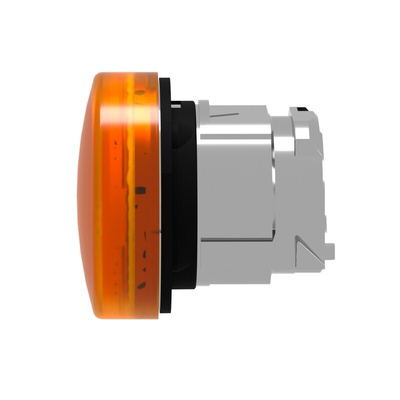

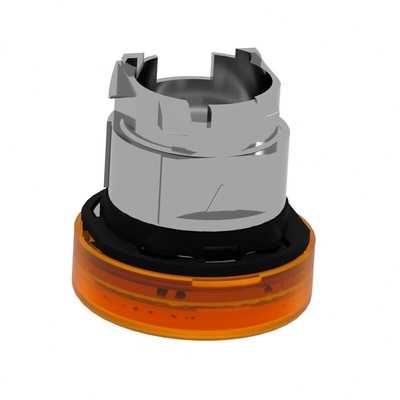

Schneider Electric Pilot Light Head, Standard Head Type, Round Signalling Unit Shape - Harmony XB4 Series - ZB4BV053

Need an easy way to check what your machinery's doing? Trust this pilot light head from Schneider Electric to see you through. Just combine it with an LED block and the assembly shines orange when activated, providing a visible indicator of your equipment's status. The unit has a tough chromium-plated metal bezel that shrugs off impact in heavy-duty applications. Thanks to a wide operating temperature range of -40°C to +70°C, it holds its own in tough environments, such as factories and warehouses.

Features & Benefits

• Compatible with Schneider Electric's universal LED blocks so it's a versatile choice
• Fits a cutout with a 22mm diameter, meaning it's easy to install on a standard panel
• Light weight of 26g keeps your setup free from strain
• Chromium-plated bezel resists corrosion to deliver a long service life in humid work areas

Applications

• Telecommunications sector
• Automotive industry
• Food and beverage production
• Paper mills

Is this product waterpoof?

Yes – it's rated IP66, which means it's fully protected from both dust damage and high-pressure water jets from any direction.

UL E164353
