ZB4BV063, Schneider Electric Blue Pilot Light Head, 22mm Cutout Harmony XB4 Series

Schneider Electric Harmony XB4 LED Pilot Light Series

Providing functions to machines and panels, Schneider Electric combines performance with an attractive design in the XB4 pilot light series. Reinforced with flushed mounting kits, this series is quick and simple to install. Modular design means these lights are adaptable and flexible, even in the most demanding environment. Harmony XB4 light series also offers a wide variety of solutions, materials, LED colour, connection and fixings as well as accessories to customise panels. Connection types available include screw clamp, fasten connector, spring terminal and printed circuit board.

Applications

The XB4 series can be used for general-purpose, Building and Infrastructure and Industry application, other applications include: Machine and control panel, chemical industry, food and beverage, automotive, paper mill, marine application and carwashes.

• This range of pilot light heads for use with a body consisting of either integral LED, neon, or LED
• The colour of the head should be matched with the same colour as the chosen LED block
• All heads require a body/ fixing collar, see stock no. 331-0142 and contact bodies, see stock no. 331-0158

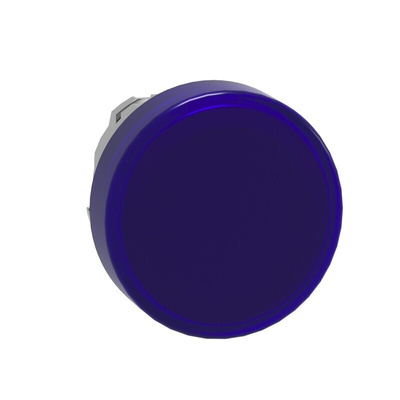

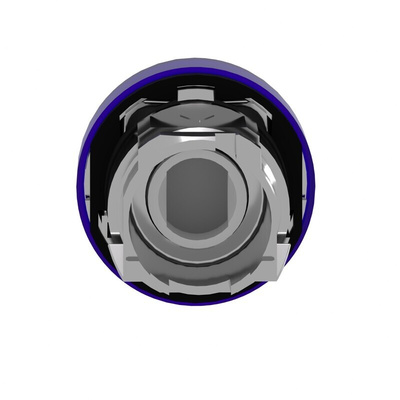

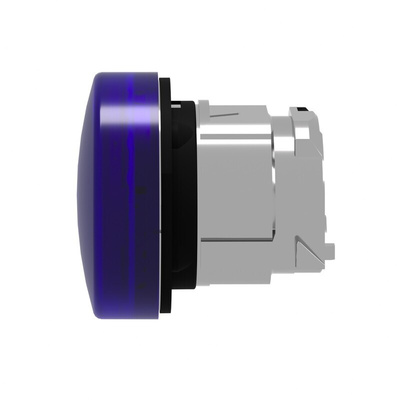

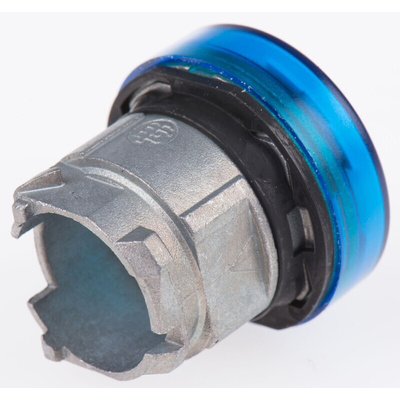

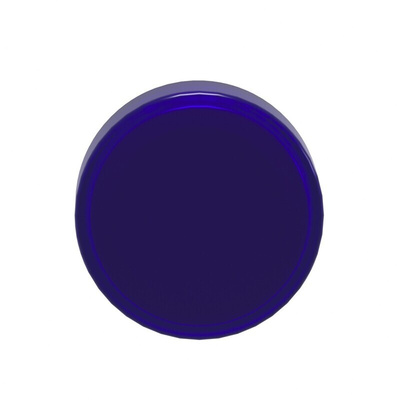

Schneider Electric Pilot Light Head, Integral LED Bulb Type, 26g Weight - Harmony XB4 Series - ZB4BV063

Steer your way towards workplace safety and efficiency with this pilot light head from Schneider Electric. The crisp blue colour is easily visible at a distance, even in gloomy conditions, and lets machine operators know when a process needs their attention. Compact overall dimensions of just 29 (W) x 29 (H) x 30mm (D) mean it won't get in the way on a busy control panel. Thanks to the integrated LED, you can expect a long service life from this hardy piece of kit, so it's a sustainable option.

Features & Benefits

• Hardy chromium-plated metal bezel is impact and vibration-resistant, suiting use in demanding settings
• Shock-resistant up to 50g, so it can handle heavy-duty use
• 22mm cutout profile is widely compatible with standard control panels

Applications

• Chemicals manufacturing
• Food processing
• Paper and pulp mills

Can this product stand up to rigorous washdown procedures?

Yes, it can. As it has an IP69K rating, this tough gadget can hold its own against high-temperature, high-pressure water jets from all directions. This means it's safe to use on machinery that's regularly scrubbed clean.

UL E164353
