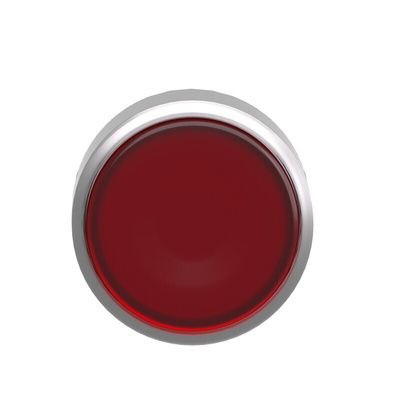

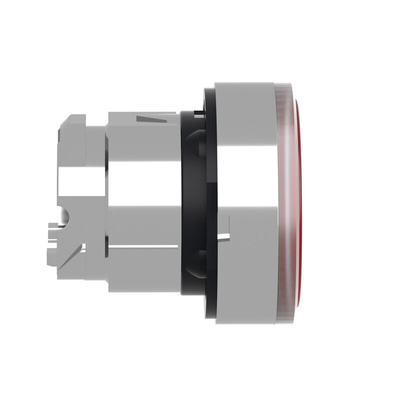

ZB4BW343, Schneider Electric ZB4 Series Red Illuminated Spring Return Push Button Head, 22mm Cutout, IP66, IP67, IP69K

Schneider Electric Push Button Heads - Harmony XB4 Series

Introducing Schneider Electrics XB4 range of metal pushbuttons, created and designed to offer flexibility and robustness whilst combining the simplicity of installations and high performance. The Harmony XB4 range of push-buttons delivers an innovative and ergonomic design which promotes easy operation as well as giving a more aesthetically pleasing finish for control panels and machines.

Features & Benefits

• Meets the most robustness and performance requirements for the majority of industrial applications


• Delivers simplicity and efficiency while keeping expenses to a minimum


• Option to convert from standard to flush mounting


• Delivers extremely robust performance, even when is the harshest of environments


• Illuminated


• Spring return


• Forms part of the Harmony XB4 series


• All heads within this range require a fixing collar, integral LED and contact assembly


• Please note: If you are using LED blocks, the colour of the head should be matched with the LED


• This range of heads have been designed to be assembled to make a complete push button

Applications

• Control panels in commercial buildings


• Factory automation lines


• For use in emergency situations where you need to cut off electrical supply via the press of a button

Schneider Electric Push Button Switch, Spring Return Actuation, Screw Clamp Terminals - Harmony XB4 Series - ZB4BW343

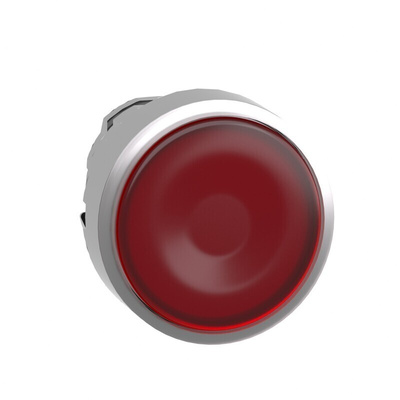

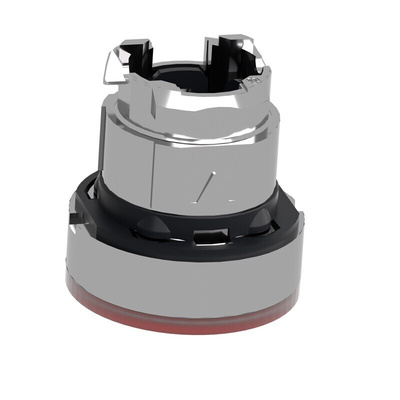

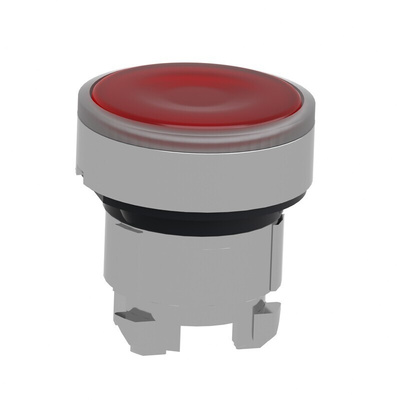

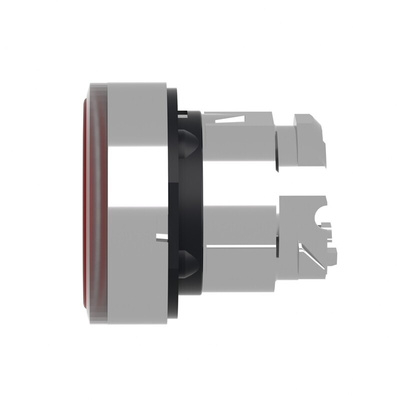

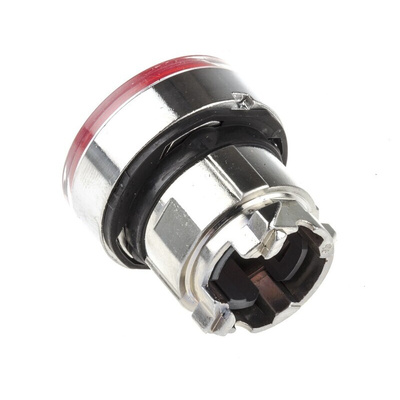

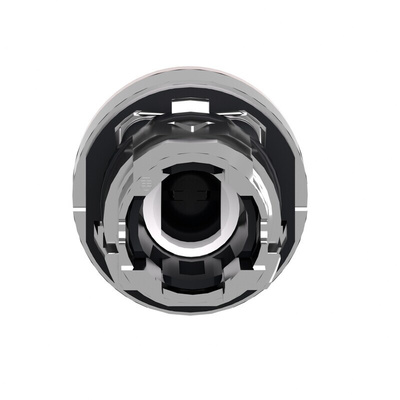

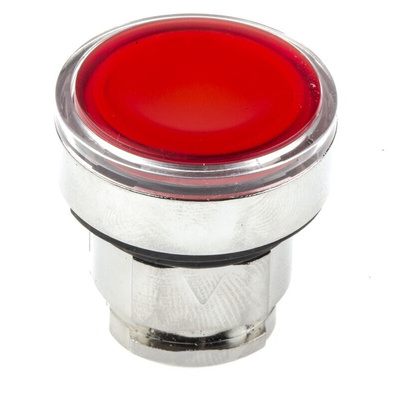

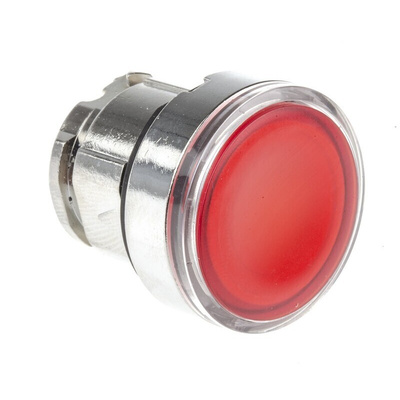

Get your machinery under your thumb with this push button switch from Schneider Electric. It's a modular unit that combines with a fixing collar, light block and contact from the Harmony XB4 series to create a complete assembly. The round button sits flush with the housing, so it's easy to operate and protected from accidental actuation. As the red head is illuminated, it's easy to check the status of your equipment. Thanks to a wide operating temperature range between -40°C and +70°C, this is a dependable option for heavy-duty conditions.

Features & Benefits

• Standard 22mm cutout diameter for straightforward installation
• Chrome-plated metal housing resists corrosion and abrasion
• IP69K-rated for protection against dust and hot, high-pressure jets of water
• Screw clamp terminal for a secure connection and easy maintenance
• Compact dimensions of 29 (W) x 29 (H) x 30 (D) save space

Applications

• Logistics centres
• Factory floors
• Safety equipment

How durable is this push button switch?

It has a mechanical durability of 10 million cycles, so you can count on it to last over long periods.

UL E164353
