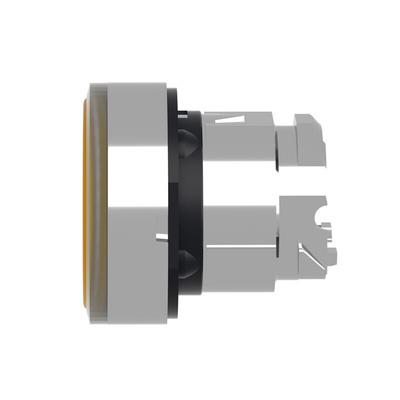

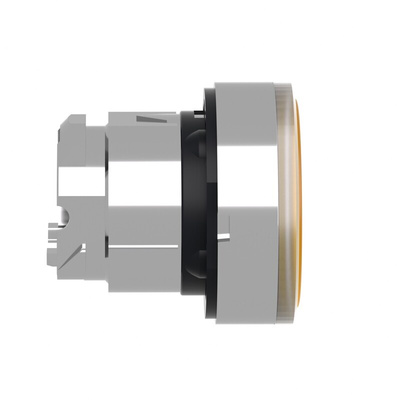

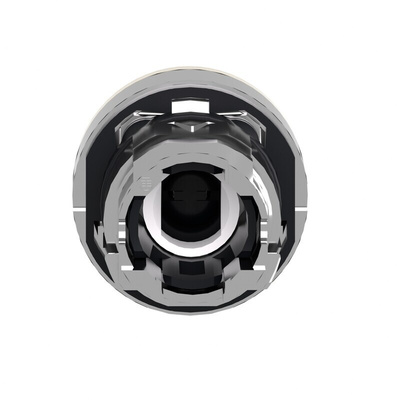

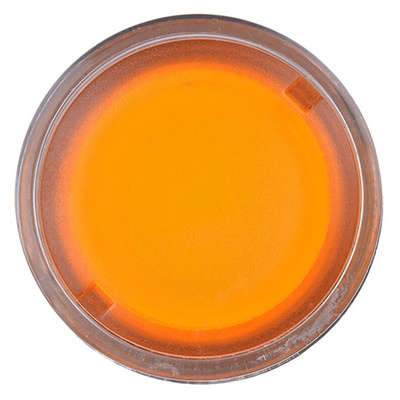

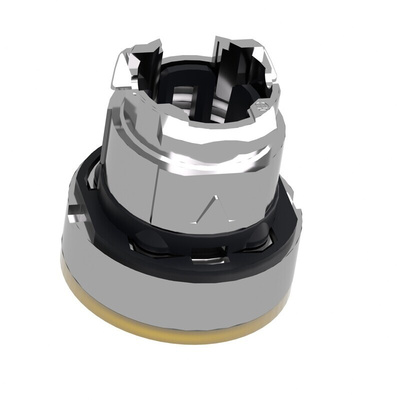

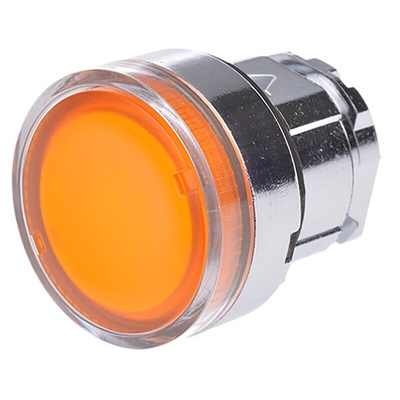

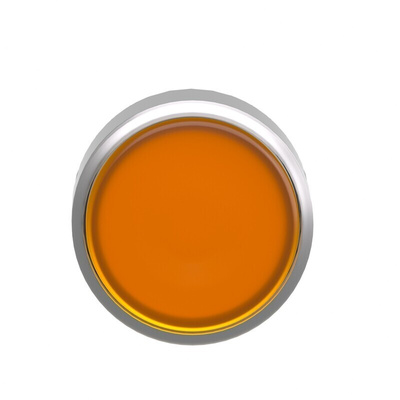

ZB4BW35, Schneider Electric Harmony XB4 Series Orange Illuminated Spring Return Push Button Head, 22mm Cutout, IP66, IP67, IP69K

Illuminated Push Button Head, Spring Return, for use with BA9s Lamps, ZB4-B

All heads require fixing collar/lamp holder/contact assembly typical stock no. 330-9760, plus a BA(s lamp of choice (neon, LED or incandescent to 2.4W max)
Cannot be used with integral LED light blocks

Schneider Electric Push Button Head, Spring Return Actuation Type, 28.5mm Button Diameter - Harmony XB4 Series - ZB4BW35

Make light work of industrial controls with this illuminated push button head from Schneider Electric. It provides a clear visual signal, even at a distance, to let machine operators know a process needs some attention. Thanks to a wide operating temperature range of -40°C to +70°C, this hardy component works well in demanding conditions. The robust chromium-plated metal bezel can stand up to the knocks and bumps of heavy-duty use, making this a dependable choice for a tough working environment.

Features & Benefits

• IP69K rating means it's waterproof against high-temperature, high-pressure jets from all directions
• Easy-to-use screw clamp terminals keep your electrical connection secure in a high-vibration setting
• Standardised 22mm mounting diameter is widely compatible for easy integration into your equipment
• Light 27g weight minimises strain on your panel

Applications

• Safety gates and enclosures
• Construction sites
• Medical technology

How long will this push button head last?

Thanks to a hefty mechanical lifespan of 10 million cycles, you can expect reliable performance from this hard-working device for years to come.

UL E164353

Datasheet

Product Environmental Profile

Instruction Sheet - ZB4/ZB5 Series
