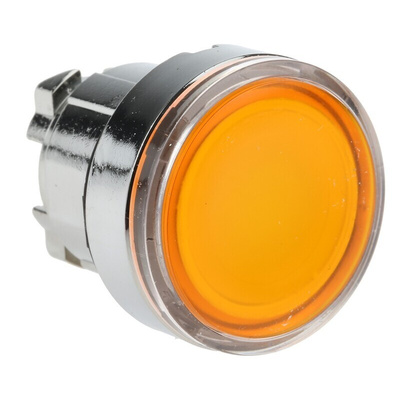

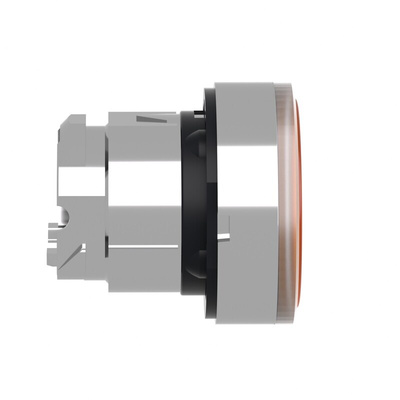

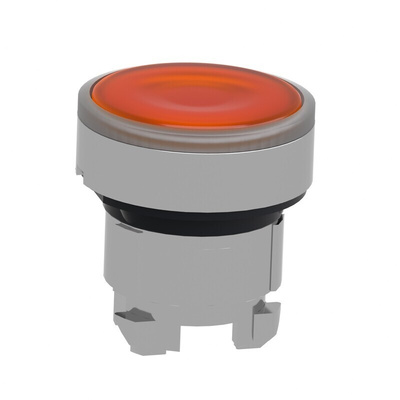

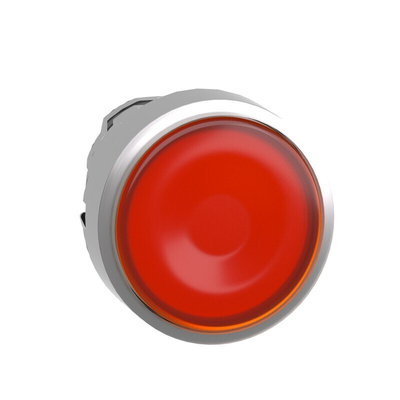

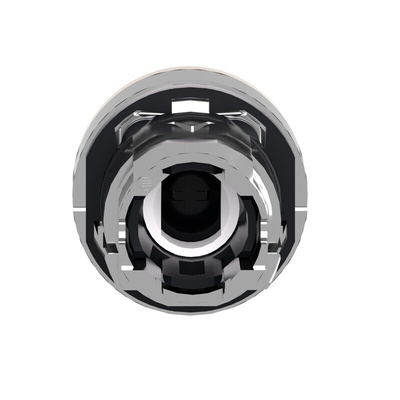

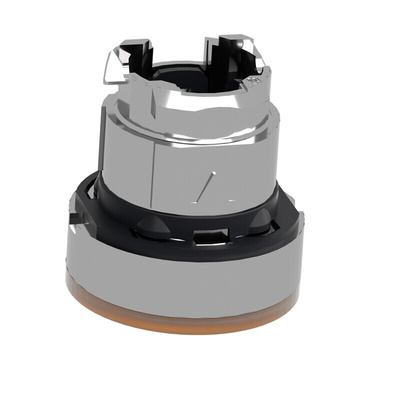

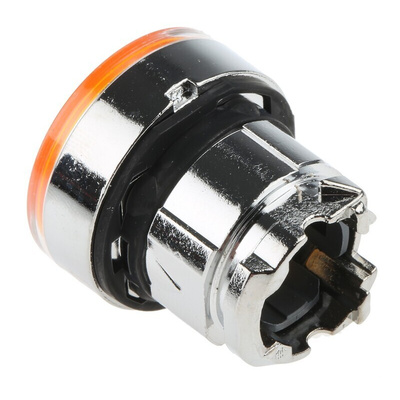

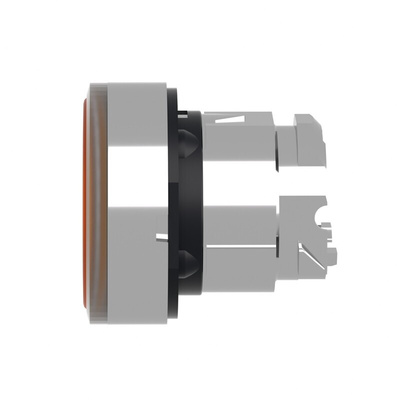

ZB4BW353, Schneider Electric Harmony XB4 Series Orange Illuminated Spring Return Push Button Head, 22mm Cutout, IP66, IP67, IP69K

Schneider Electric Push Button Heads - Harmony XB4 Series

Introducing Schneider Electrics XB4 range of metal pushbuttons, created and designed to offer flexibility and robustness whilst combining the simplicity of installations and high performance. The Harmony XB4 range of push-buttons delivers an innovative and ergonomic design which promotes easy operation as well as giving a more aesthetically pleasing finish for control panels and machines.

Features & Benefits

• Meets the most robustness and performance requirements for the majority of industrial applications


• Delivers simplicity and efficiency while keeping expenses to a minimum


• Option to convert from standard to flush mounting


• Delivers extremely robust performance, even when is the harshest of environments


• Illuminated


• Spring return


• Forms part of the Harmony XB4 series


• All heads within this range require a fixing collar, integral LED and contact assembly


• Please note: If you are using LED blocks, the colour of the head should be matched with the LED


• This range of heads have been designed to be assembled to make a complete push button

Applications

• Control panels in commercial buildings


• Factory automation lines


• For use in emergency situations where you need to cut off electrical supply via the press of a button

Schneider Electric Push Button Head, Chromium-Plated Metal Body, Spring Return Operator - Harmony XB4 Series - ZB4BW353

Get the upper hand on machine control with this push button head from Schneider Electric. It's a spring return type, so it performs an action only when you press it and switches off again when you remove your hand. This makes it suitable for manual equipment tasks like jogging and conveyor movement. Thanks to its chromium-plated metal body, this unit shrugs off corrosion and impact with ease, so it's a handy choice in harsh industrial settings. As it's flush-mounted into your panel, there's minimal risk of accidental actuation, which boosts safety.

Features & Benefits

• Fits into a standard 22mm cutout, so you don't need to bore a new slot in existing machinery
• Integrated LED makes it easy to see when the button's in operation
• IP69K rating means dust can't get into the unit and it withstands high-pressure, high-temperature jets of water during washdowns

Applications

• Medical equipment
• Mechanical workshops
• Oil and gas plants

How durable is this switch?

This unit handles up to 10 million operating cycles, so you can count on it to stand the test of time

UL E164353
