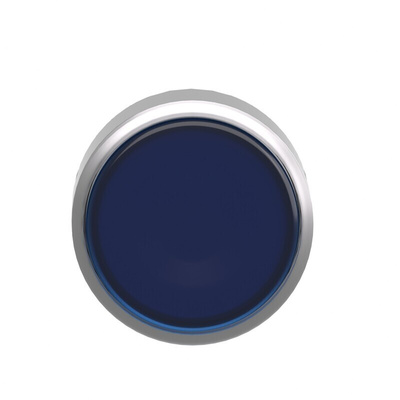

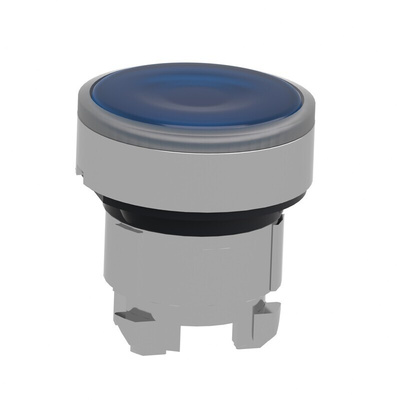

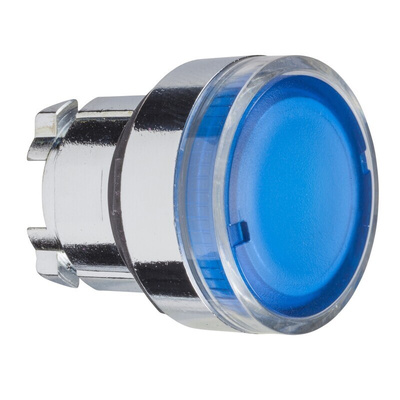

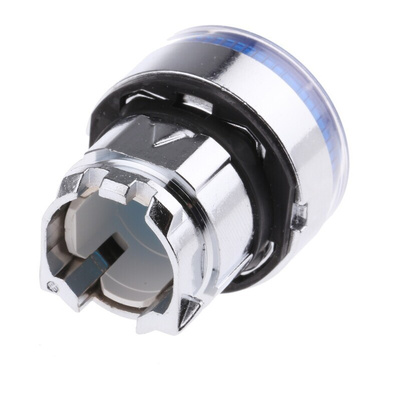

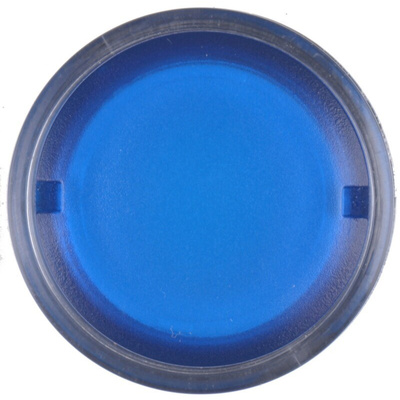

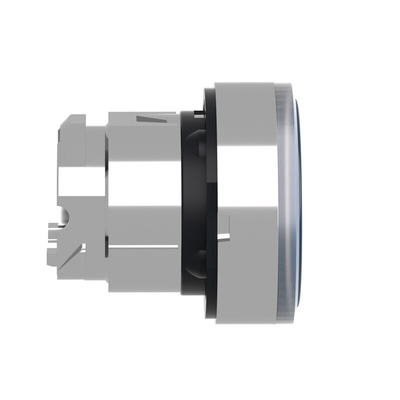

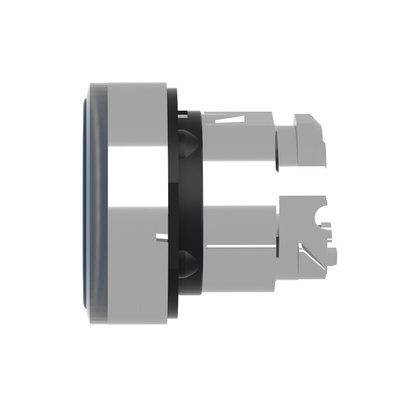

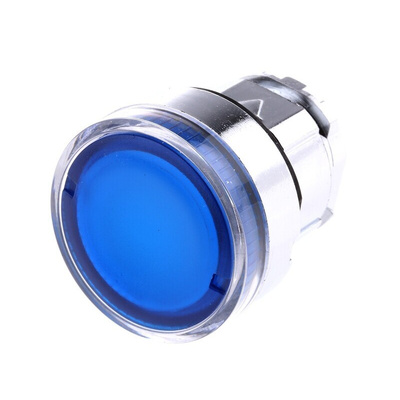

ZB4BW36, Schneider Electric Harmony XB4 Series Blue Illuminated Spring Return Push Button Head, 22mm Cutout, IP66, IP67, IP69K, Кнопка

Illuminated Push Button Head, Spring Return, for use with BA9s Lamps, ZB4-B

All heads require fixing collar/lamp holder/contact assembly typical stock no. 330-9760, plus a BA(s lamp of choice (neon, LED or incandescent to 2.4W max)
Cannot be used with integral LED light blocks

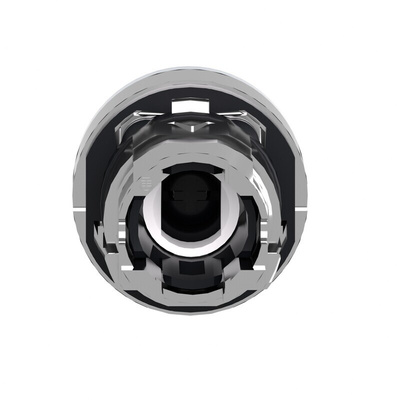

Schneider Electric Push Button Head, Blue Illumination, Spring Return Actuation Type - Harmony XB4 Series - ZB4BW36

Put power at your fingertips with this push button head from Schneider Electric. Mounting this unit in a compatible assembly lets you make or break a connected circuit just by pressing on its flat surface. For easy machine monitoring, the device illuminates brightly on actuation. Its snap-on design makes for a speedy and straightforward setup. With a broad operating temperature range between -40°C to +70°C, it's a tough cookie that's ideal for use in harsh work areas.

Features & Benefits

• Metal bezel protects the component from impact and vibration in heavy-duty applications
• 22mm cutout ensures it's compatible with standard industry equipment
• Light weight of 27g limits the strain on your mounting surface
• IP66 rating indicates it's dust-tight and resists high-pressure water jets from any direction
• Flush design helps prevent accidental activation

Applications

• Automotive industry
• Medical equipment
• Industrial control panels

What bulb type does this unit use?

This push button head accepts a standard BA9s LED, meaning it's a breeze to replace it as needed.

How reliable is this product?

The mechanical durability rating of this unit is 10 million cycles, showing it's highly reliable.

UL E164353
