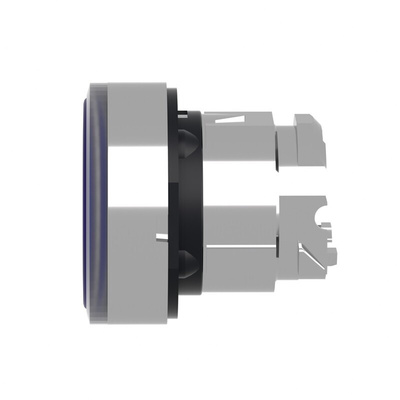

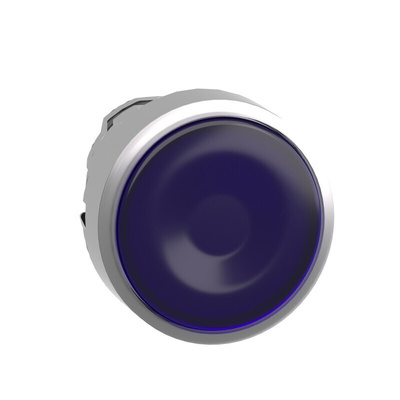

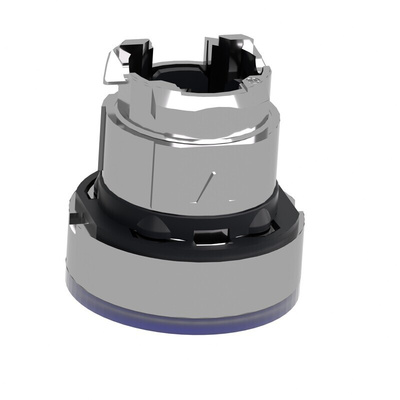

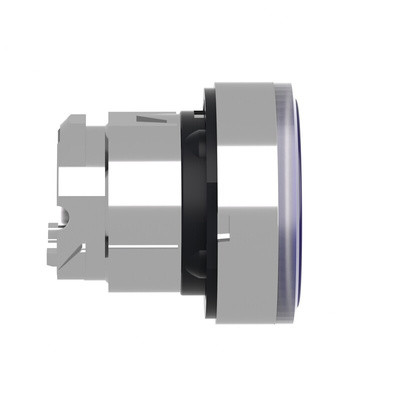

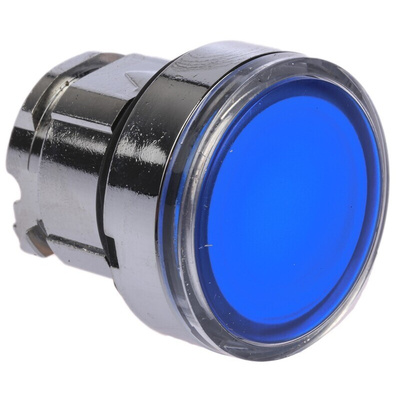

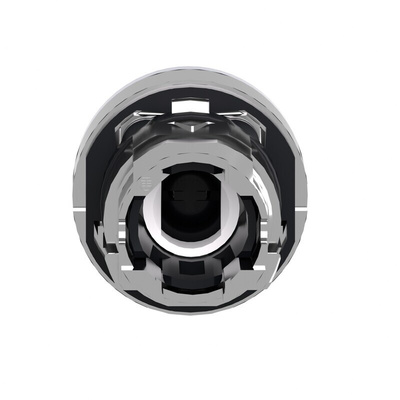

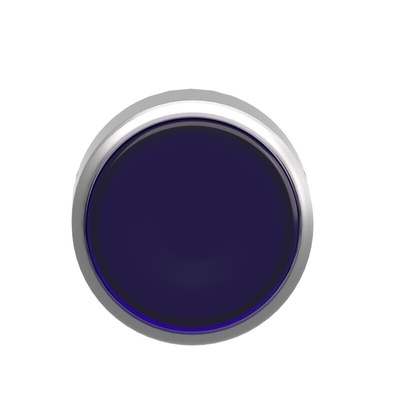

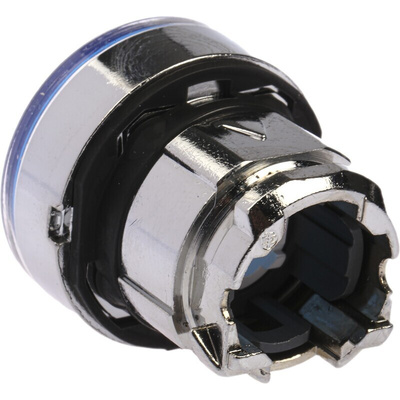

ZB4BW363, Schneider Electric Harmony XB4 Series Blue Illuminated Spring Return Push Button Head, 22mm Cutout, IP66, IP67, IP69K

Schneider Electric Push Button Heads - Harmony XB4 Series

Introducing Schneider Electrics XB4 range of metal pushbuttons, created and designed to offer flexibility and robustness whilst combining the simplicity of installations and high performance. The Harmony XB4 range of push-buttons delivers an innovative and ergonomic design which promotes easy operation as well as giving a more aesthetically pleasing finish for control panels and machines.

Features & Benefits

• Meets the most robustness and performance requirements for the majority of industrial applications


• Delivers simplicity and efficiency while keeping expenses to a minimum


• Option to convert from standard to flush mounting


• Delivers extremely robust performance, even when is the harshest of environments


• Illuminated


• Spring return


• Forms part of the Harmony XB4 series


• All heads within this range require a fixing collar, integral LED and contact assembly


• Please note: If you are using LED blocks, the colour of the head should be matched with the LED


• This range of heads have been designed to be assembled to make a complete push button

Applications

• Control panels in commercial buildings


• Factory automation lines


• For use in emergency situations where you need to cut off electrical supply via the press of a button

Schneider Electric Push Button Head, 22mm Mounting Diameter, Spring Return Operation - Harmony XB4 Series - ZB4BW363

Want to prevent mix-ups when managing your equipment? Choose this blue push button head from Schneider Electric. It easily snaps onto an illuminated button and contact block, meaning you can clock the status of machinery at a glance. Close control is at your fingertips, thanks to a spring return mechanism that means the switch is on when pressed and off when released. With a mechanical durability of 10 million cycles, this unit takes the strain of repeated use. A low weight of 26g means your setup stays strain-free.

Features & Benefits

• Safe to use in harsh settings thanks to an operating temperature range of -40°C to +70°C
• IP69K-rated, so it's protected from dust and withstands high-pressure, high-temperature water jets during washdowns
• Standard 22mm cutout diameter for easy compatibility with your panel

Applications

• Military technology
• Telecommunications sector
• Security networks

Is this product resistant to impact?

Yes – its metal bezel is chromium-plated, which means it's highly durable and withstands impact in tough tasks. As this material resists corrosion, it's safe to use in damp conditions.
